Rika professional weighing bucket rain gauge manufacturer for agriculture

Rika professional weighing bucket rain gauge manufacturer for agriculture

Model:
RK400-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika professional weighing bucket rain gauge manufacturer for agriculture
Enterprise Strength
  • With a comprehensive service system, Rika Sensors can provide quality products and services as well as meet customers' needs.

PRODUCT DESCRIPTION

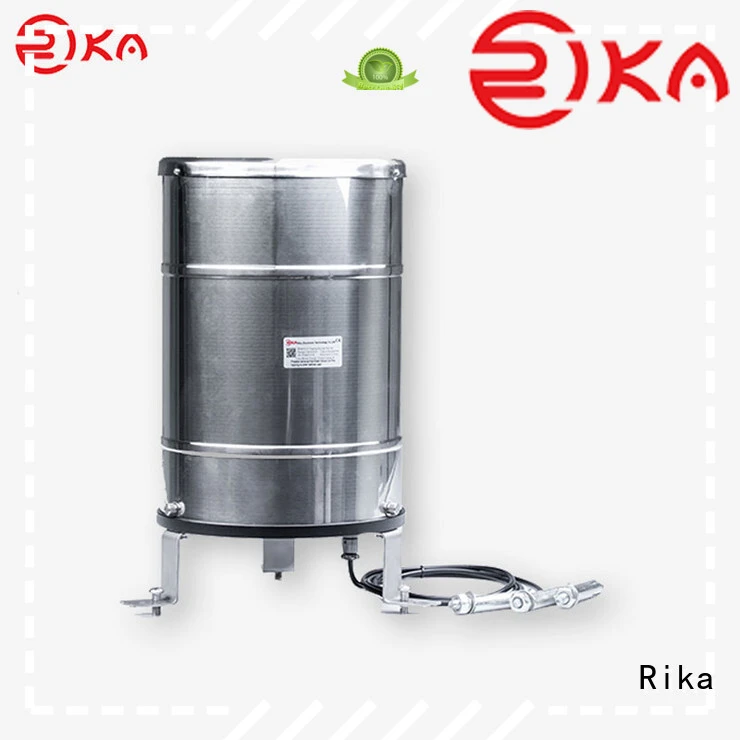

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika professional weighing bucket rain gauge manufacturer for agriculture-1

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika professional weighing bucket rain gauge manufacturer for agriculture-10

Rika professional weighing bucket rain gauge manufacturer for agriculture-11Product Principle & Material

Rika professional weighing bucket rain gauge manufacturer for agriculture-12

Rika professional weighing bucket rain gauge manufacturer for agriculture-13 Product Feature

Rika professional weighing bucket rain gauge manufacturer for agriculture-14

Rika professional weighing bucket rain gauge manufacturer for agriculture-15Product Feature

PRODUCT APPLICATION
