PRODUCT DESCRIPTION

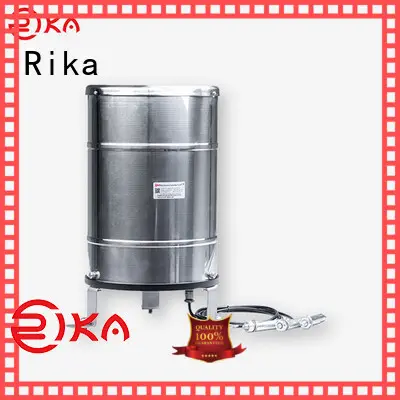

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.
SPECIFICATIONS
ltem | Technical Specification |
Rainfall collector | φ200mm,40-45° |
Measured rainfall intensity | Max:4mm/min |
Allow rainfall intensity | Max:10mm/min |
Resolution | 0.2mm |
Accuracy(2mm/min) | ±4%(Indoor static test,rain intensity of 2mm/min) |
Maximum load voltage | 30VDC(pulse output) |
Maximum load current | 20mA(pulse output) |
Output | Reed switch pulses,RS485(12-24VDC supply) |
Operating temperature(no freeze) | 0-70℃ |
Main material | Collector:304SS,tipping bucket:ABS |
Tipping bucket | Single |
Collector filter | Removable filter(prevent leaves and sundries) |
Bird spikes | Optional |
Heating(optional) | 200W@220V |
Weight(unpacked) | 3.5kg |
WORKING PROCESS & DIMENSION

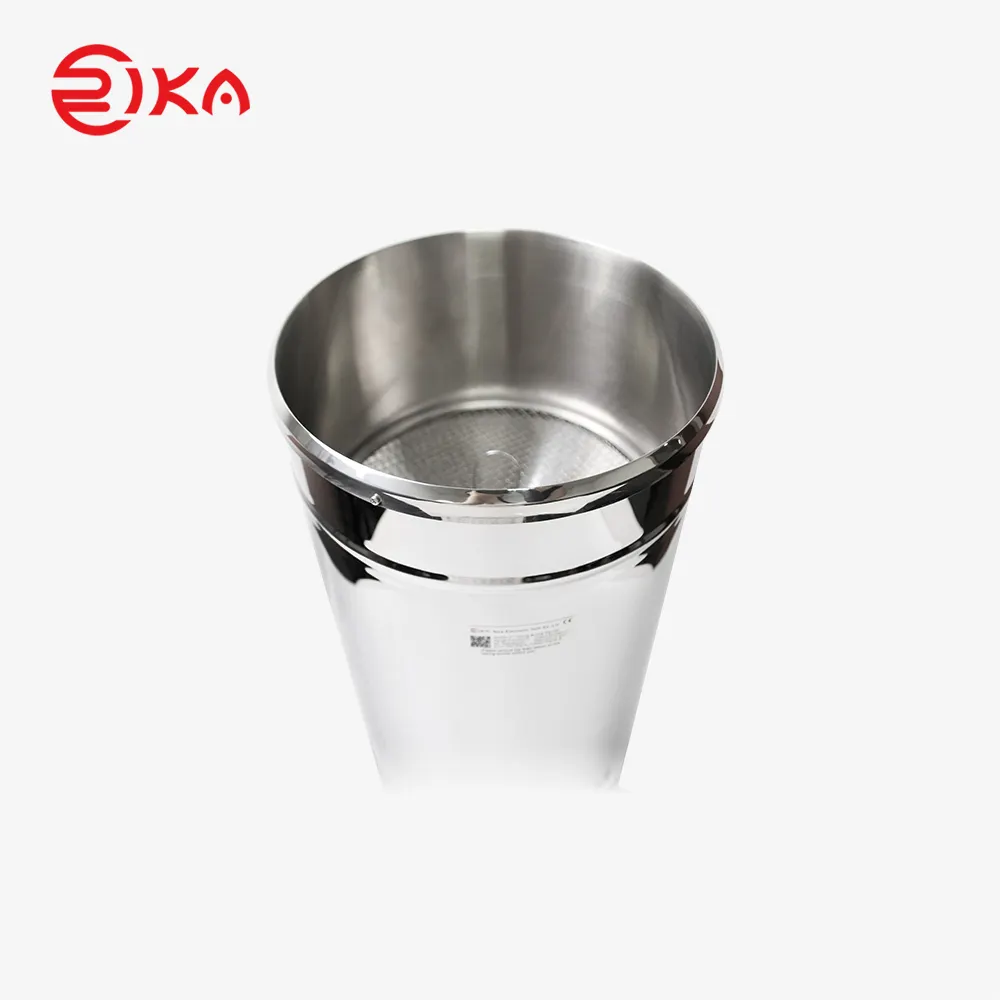

Rainfall is captured in the 200mm diametercollector funnel and is directed through adelivery pipe to fill a divided ABS injectionmolded tipping bucket device.The bucketis pivoted through its center and has apreset calibration to tip for 0.2 mm ofrainfall.When the bucket is “full”,it pivotsand empties -this action magneticallycloses and opens a reed switch,sending apulse signal to the data logger or electroniccounter.Through this tipping“seesaw”action,the other side of the bucket isaligned to receive the flow from the deliverypipe.This recording and tipping cyclecontinues with rainfall.
