 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors conductive water level sensor factory for consumer applications 1
Rika Sensors conductive water level sensor factory for consumer applications 1

Rika Sensors conductive water level sensor factory for consumer applications

Payment:
T/T, L/C or Paypal
MOQ:
1PCS
Model:
RKL-03
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry


PRODUCT DESCRIPTION

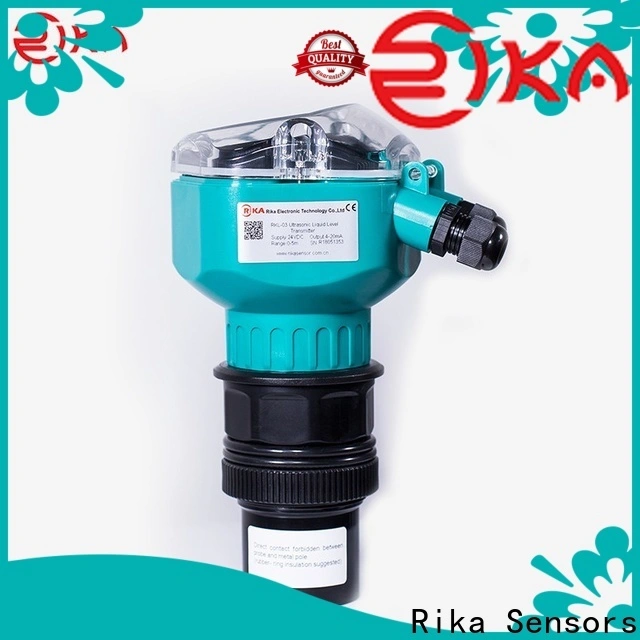

RKL-03 Ultrasonic Liquid Level Transmitter is a kind of non-contact, high reliability, high cost performance, easy installation and maintenance of material level measuring instrument.It doesn't have to contact medium can meet the requirements of most of the material level measurement.Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium.The product can cooperate with RK600-01 data logger or general recording instrument is used.

Rika Sensors conductive water level sensor factory for consumer applications 2

SPECIFICATIONS

Item

Technical specifications

Range

5m,10m,15m,20m,30m

Output

4-20mA( 2wires),4-20mA(4wires),RS485(4wires)

Supply Voltage

24VDC,220VAC

Accuracy

0.5%-1%

Resolution

±3mm or 0.1%FS(take the maximum value)

Display

LCD with English

Control output(optional)Relay AC250V/8A or 30V/5A
Power consumption

4-wire,without relay:1.9W

4-wire,with relay:3.1W

2-wire,without relay:0.72W

Ingress ProtectionProbe:IP68,Display unit:IP66
Operating TemperatureProbe:-40℃~ +85℃,Display unit:-20℃~ +60℃
Housing materialAnti-aging corrosion resistant engineering plastics
Process connection

Range=0-5m:M48*2

Range=0-10m:G2 or M60*2

Range=0-20m:G3 or M78*2

Range=0-30m:G3 M78*2

Range>30m:M108*2

Menu settingReference zero point, maximum of measuring range,minimum of measuring range,alarm point,Return difference setting,working mode,response time,parameter correction,communication setting etc.
Storage Condition10℃-50℃@20%-90%RH


MOUNTING

DIMENSION

Unit:mm

Rika Sensors conductive water level sensor factory for consumer applications 10

PRODUCT DETAILS

Rika Sensors conductive water level sensor factory for consumer applications 11

Rika Sensors conductive water level sensor factory for consumer applications 12Suitable for outdoor installation

Rika Sensors conductive water level sensor factory for consumer applications 13

Rika Sensors conductive water level sensor factory for consumer applications 14 Standard LCD display

Rika Sensors conductive water level sensor factory for consumer applications 15

Rika Sensors conductive water level sensor factory for consumer applications 16Product decomposition & wire connection

Rika Sensors conductive water level sensor factory for consumer applications 17

Rika Sensors conductive water level sensor factory for consumer applications 18Ultrasonic non-contact probe

PRODUCT APPLICATION
