Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors environmental monitoring instruments factory for air temperature monitoring

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK300-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

PRODUCT DESCRIPTION

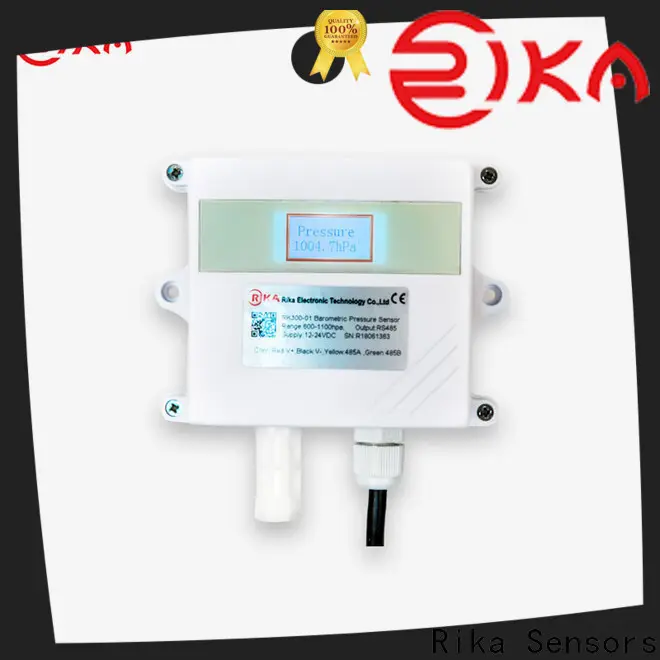

RK300-01 Wall-mounted Barometric Pressure Sensor with small size, reliable performance, high precision, long transmission distance, strong anti-jamming capability,which is widely used in meteorology, marine, environment, airports, ports, laboratory, agricultural and transportation and other fields.

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 2

High sensitivity.

LCD display optional.

Temperature compensation.

Fast response.

Multiple signal output options.

Excellent stability.

SPECIFICATIONS

Item	Technical Specification
Range	600-1100hPa(mbar)
Resolution	0.1hPa
Accuracy	±0.5hPa
Temperature Drift	≤0.02%FS/℃
Response Time	<1s
Supply	5VDC, 12-24VDC
Output Signal	RS485, 4-20mA, 0-5V, 0-10V optional
Operating Temperature	-40℃-+75℃
Ingress Protection	IP65
Storage	10-60℃@20%-90%RH
Dimensions	117 8640 mm
Weight(unpacked)	100g

DIMENSION & MOUNTING

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 9

1. Install the product in stable environment area, avoid direct sunlight, away from windows air-conditioning, heating and other equipment. Otherwise it will cause atmospheric pressure measurement inaccuracies.

2. It is recommended to install in the cabinet open to the atmosphere,for example: instrument shelter

PRODUCT DETAILS

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 10

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 11 Product Principle & Material

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 12

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 13 Product Features

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 14

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 15 Multiple Output Optional

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 16

Rika Sensors environmental monitoring instruments factory for air temperature monitoring 17 Connection & Installation

PRODUCT APPLICATION

Agriculture Weather Station

Automatic weather station

PV Station

Scenic Spot

Weather Station

Schoolyard Weather Station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
