Rika Sensors great liquid level controller solution provider for industrial applications

Rika Sensors great liquid level controller solution provider for industrial applications

Model:
RKL-02
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika Sensors great liquid level controller solution provider for industrial applications


PRODUCT DESCRIPTION

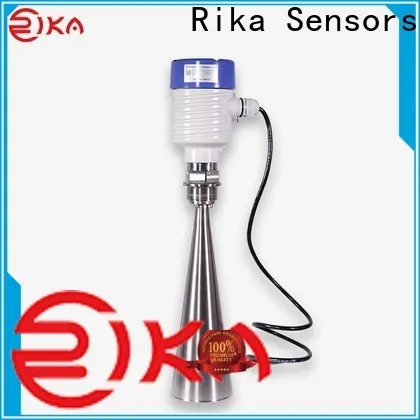

RKL-02 Radar Liquid Level Transmitter antenna emitter narrow microwave pulse, the pulse in the space at the speed of light transmission, met on the surface of measured medium, some of its energy is reflected back, by the same antenna.Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium.

Rika Sensors great liquid level controller solution provider for industrial applications-1

SPECIFICATIONS

Item

Technical specifications

Range

10m,30m,50m,70m

Output

4-20mA,4-20mA with hart,RS485(MODBUS-RTU)

Supply Voltage

16-40VDC,100-240VAC

Process connection

G1_1/2,support flange

Working frequency

26GHz

Accuracy

128*64LCD display resolution:1mm

Relay alarm

250VAC/30VDC@5A   Optional

Ingress Protection

IP67

Medium temperature

-40℃~ +80℃

Medium pressure

-100~100kPa

Operating Temperature

-40℃~ +85℃

Housing material

Aluminum alloy

Antenna material

304ss

Shock

10m/s²@10~150Hz

Storage Condition

10℃-50℃@20%-90%RH


MOUNTING

Radar antenna launch microwave has a certain Angle, from the edge of the antenna to the surface between the measured medium, and launch a microwave beam radiation areas shall not be an obstacle.


Rika Sensors great liquid level controller solution provider for industrial applications-9

In order to ensure that products meet the requirements of IP67 rating,please make sure:

   The sealing head intact;

   The cable is not damaged;

   Ensure that the cable used in line with the requirements of electrical connection in the specification;

   Before entering the electrical interface, the cable bending down, to ensure that water will not flow into the shell, as shown in;

   Please tighten the cable seal head, see;

   Please return the unused electrical interfaces to blind plugging plugging tight, see.


DIMENSION

Rika Sensors great liquid level controller solution provider for industrial applications-10
Rika Sensors great liquid level controller solution provider for industrial applications-11

Type A

Flange

D(mm)H(mm)Type BFlangeD(mm)

H(mm)

DN50

Ф46140DN80Ф76227

DN80

Ф76227DN100Ф96288

DN100

Ф96288DN125Ф121620


PRODUCT DETAILS

Rika Sensors great liquid level controller solution provider for industrial applications-12

Rika Sensors great liquid level controller solution provider for industrial applications-13Product Feature

Rika Sensors great liquid level controller solution provider for industrial applications-14

Rika Sensors great liquid level controller solution provider for industrial applications-15 Outdoor Usage

Rika Sensors great liquid level controller solution provider for industrial applications-16

Rika Sensors great liquid level controller solution provider for industrial applications-17Product Material

Rika Sensors great liquid level controller solution provider for industrial applications-18

Rika Sensors great liquid level controller solution provider for industrial applications-19Product Installation

PRODUCT APPLICATION
