Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

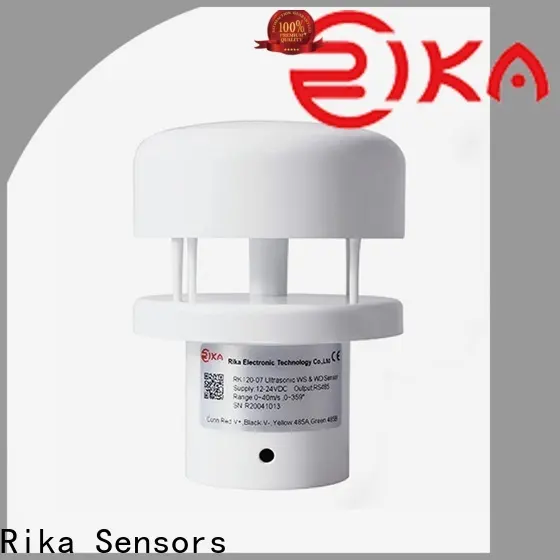

Rika Sensors great low cost ultrasonic anemometer factory for meteorology field
Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2PCS
Model:
RK120-07
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Item | Technical Specification |
Power Supply | 12-24VDC |
Power consumption | 1.7W |
Output Signal | RS232/RS485(Modbus/NMEA-0183),SDI-12 |
Operating Temperature | -30℃-+60℃ |
Ingress Protection | IP65 |
Dimension | Ф82*108mm |
Weight(unpacked) | 0.8kg |
Main material | ABS |
Item | Technical Specification | ||
Range | Resolution | Accuracy | |
Wind Speed | 0-40m/s | 0.1m/s | ±3% |
Wind Direction | 0-360° | 1° | ±3° |
| Starting Threshold | 0.1m/s | 0.1m/s | - |
| Extreme Wind Speed | 60m/s | ||
Step1:
Positioning: generally, RK120-07 is installed in a vertical installation pipe .ensure the measurement on the same level.
For indoor use, the sensor can be used at any where .Directional installation to measure wind speed on different planes.
Step2:
There is rotary adjustable mounting holes at the bottom of the senor,when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.
Step3:
Installation: the installation pipe needs 3 equally spaced holes, tapping M5 screws, position7.5mm from the top of the pipe.
