Rika Sensors illumination sensor supplier for shortwave radiation measurement

Rika Sensors illumination sensor supplier for shortwave radiation measurement

Model:
RK200-02
MOQ:
2PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika Sensors illumination sensor supplier for shortwave radiation measurement

Company Advantages
1. During the production of Rika Sensors , different optimized processing techniques such as electrostatic spinning, air vortex spinning, or jet spinning are adopted.
2. Rika Sensors has always persisted in pursuing service and quality. The design of this product can be customized according to needs
3. The product is used to seal acid liquid or solids. During the production, it has been treated with acid pickling to optimize its acid resistance. This product comes in a wide range of models to suit every application

Company Features
1. Hunan Rika Electronic Tech Co.,Ltd has the knowledge and experience to maintain the position as one of the top makers in China. The factory has a complete set of production facilities to support production tasks. All these production facilities feature high efficiency and accuracy, which eventually guarantees smooth and efficient production processes.
2.  Our factory has the most advanced production equipment. They enable us to provide the most complex design requirements, while also ensuring superior quality control standards.
3.  Our company is supported by a team of professional manufacturing members. Based on their deep understanding of the industry and expertise, they work hard to ensure the highest quality standards from start to finish. We firmly believe in the basic tenet that . Please contact us!


PRODUCT DESCRIPTION

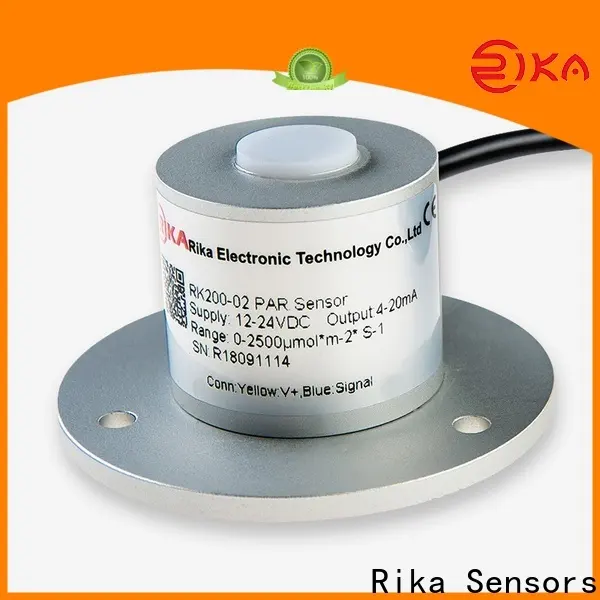

The RK200-02 PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by the silicon-photo detector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol/m2*s.

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-1

    SPECIFICATIONS

    Item

    Specification

    Spectral range

    0-2500μ*mol/m2*s

    350-1100nm

    0-2000W/m2400-700nm

    Supply

    5V,12-24VDC

    Accuracy
    ±5% rdg

    Range

    0-2500μ*mol/m2,0-2000W/m2

    Output

    0-2000mV

    4-20mA(2-wires)

    RS485

    Sensitivity

    0-2500μ*mol/m2*s

    0.8mV/μmol*m-2* S-1

    6.4μA/μ*mol*m2*s/
    0-2000W/m21mV/W/m28uA/W/m2/

    Response time

    <1s (99%)

    Temperature effect

    <0.05%/℃

    Cosine correction

    <10% (until 80°)

    Non-linearity

    <±2%

    Operating temperature

    -40℃-+80℃°

    Shell material

    Aluminum alloy

    Storage Condition

    10℃-60℃@20%-90%RH


    OUTPUT CHARACTERISTICS

     0-2000mV

    Range:0-2000W  PAR values(W)= Voltage output value(μV)/1000

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= Voltage output value(μV)/160

     4-20 mA

    Range:0-2000W  PAR values(W)=(I(μA)-4000μA)/0.8 (Where I is output current value,unit:μA )

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= (I(μA)-4000μA)/6.4(Where I is output current value,unit:μA )

     RS485

    MODBUS-RTU

    DIMENSION

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-8

    In order to ensure measurement accuracy, please keep the horizontal installation.


    PRODUCT DETAILS

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-9

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-10Product Principle

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-11

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-12 Product Range

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-13

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-14Product Output Optional

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-15

    Rika Sensors illumination sensor supplier for shortwave radiation measurement-16Product Installation
