Rika Sensors perfect liquid level control switch solution provider for consumer applications

Rika Sensors perfect liquid level control switch solution provider for consumer applications

Model:
RKL-01
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika Sensors perfect liquid level control switch solution provider for consumer applications

Company Advantages
1. The manufacturing processes of Rika Sensors involve several requirements. They mainly include the insulating performance for materials and safety testing for operation. This product is equipped with compatible interfaces
2. Most people replaced the old one with this product agreed that it does help cut down costs on electricity bills. This product is a great detection helper for many engineers
3. Our factory guarantees the production of this product to the highest standards. This product has the advantage of vibration resistance
4. After thousands of testings, the product is ensured to have a first-class quality. This product can be individually mounted or directly to a pipe

Company Features
1. liquid level control switch is not only reflected in Rika Sensors's products and technologies, but also reflected in our strategy and business model.
2.  Our fluid level detector can meet customers for different positioning and requirements of liquid level transmitter . Ask online!


PRODUCT DESCRIPTION

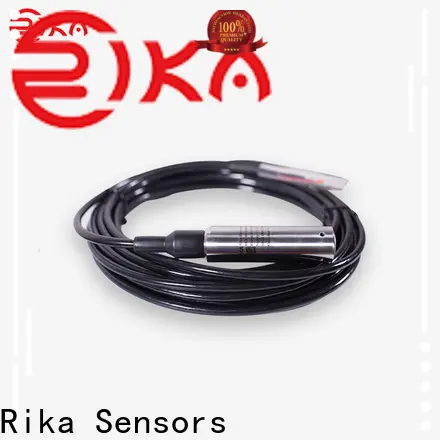

RKL-01 Submersible Liquid Level Transmitter  is with stainless steel isolation diaphragm diffusion silicon pressure core body, the pressure core body adopts the process of laser trimming resistor for a wide temperature range of zero and sensitivity temperature compensation. Special cable for air-venting conduit and waterproof technology ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

Rika Sensors perfect liquid level control switch solution provider for consumer applications-1

SPECIFICATIONS

Item

Technical specifications

Range

0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa

Output

4-20mA,0-5V,0-10V,RS485

Supply Voltage

10-30VDC,24V typ.

Over Pressure

2×FS

Measuring Medium

The liquid(not sticky ) compatible with 316 stainless steel

Total Accuracy

0.1%FS,0.3%FS(0.25%FS),0.5%FS

Long-term Stability

0.1%FS/year typ.,0.2%FS/year max.

Ingress Protection

IP68

Operating Temperature

-40℃~ +80℃

Compensating Temperature

-10℃~ 70℃

Temperature Drifting

0.03%FS/℃ typ.,0.05%FS/℃

Cycle Life

1*10^8 @25℃

Main Material

Sensor:316L,housing:304SS(316L is optional)

Cable

Outer material:PUR,Atmospheric pressure compensation cable,
     Polymer waterproof plug at cable end

Power Consumption

Current output:(U*0.02)W, Voltage output:(U*0.008)W, Digital output:(U*0.015)W

Load Capacity

Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ

Weight(probe unpacked)

Approx. 230g

Storage Condition

10℃-50℃@20%-90%RH

DIMENSION & FIXED BRACKET(OPTIONAL)

MOUNTING

As shown in picture 1,when the sensor is installed in static water such as in poos,water towers,probe is immersed into the bottom and should be as far as possible away from the pump or valves.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.
As shown in picture 2,when the sensor is installed in dynamic water such as dams or rivers,probe should be inserted into a steel pipe(inner dia is around 45mm),burrowing several holes at different height on the pipe side wall which is opposite to the water flow direction.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.

Rika Sensors perfect liquid level control switch solution provider for consumer applications-10
Rika Sensors perfect liquid level control switch solution provider for consumer applications-11

PRODUCT DETAILS

Rika Sensors perfect liquid level control switch solution provider for consumer applications-12

Rika Sensors perfect liquid level control switch solution provider for consumer applications-13Product inner part

Rika Sensors perfect liquid level control switch solution provider for consumer applications-14

Rika Sensors perfect liquid level control switch solution provider for consumer applications-15 Product accuracy and material

Rika Sensors perfect liquid level control switch solution provider for consumer applications-16

Rika Sensors perfect liquid level control switch solution provider for consumer applications-17PUR cable

Rika Sensors perfect liquid level control switch solution provider for consumer applications-18

Rika Sensors perfect liquid level control switch solution provider for consumer applications-19IP68 waterproof design

PRODUCT APPLICATION
