PRODUCT DESCRIPTION

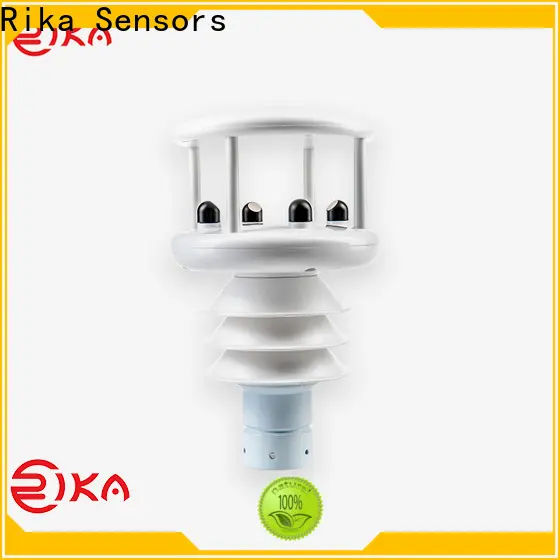

RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity,air pressure,wind speed, wind direction, solar radiation,Illuminance/UV, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield. Wind speed and direction of ultrasonic rinciple. 24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass can be mounted to the system to give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 2

High accuracy

Fast response

Auto-heating function

Radar rainfall measurement

Easy to install

RS485 output

SPECIFICATIONS

Measure item		Principle	Range	Resolution	Accuracy
Wind speed		Ultrasonic	0-60m/s	0.01m/s	±3%
Wind direction		Ultrasonic	0-360º	1°	±3°
Atmospheric temperature		MEMS	-40-+80℃	0.1℃	±0.3℃
Atmospheric humidity		MEMS	0-100%RH	0.1%RH	±3%
Atmospheric pressure		MEMS	150-1100hPa	0.1hpa	±1hPa
Precipitation(Rain/Hail/Snow)		Radar	0-4mm/min	0.01mm	±0.4mm
Solar radiation		Silicon-cell	0-1750W/m2	1W/m2	±5%
Illuminance	optional	Silicon-cell	0-20klux	1lux	±5%
UV		Silicon-cell	100-200kμW/cm2	1μW/cm2	±10%
Dust concentration(PM2.5,PM1)		Photoelectric scattering	0-2000μg/m3	1μg/m3	±4%

Supply		12-24VDC
Output		RS485,RS232,SDI-12
Communication Protocol		Modbus-rtu(default), NMEA-0183,SDI-12
Data update cycle		1s(default), other optional
Power consumption		<2W, auto-heating power: 6W
Operating temperature		-40-+80℃
EMC		EN61000-6-3, EN61000-3-3, EN61000-3-2, EN61000-6-1
IP Rating		IP66
Main material		ABS+ Aluminum alloy

DIMENSION

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 9

PRODUCT DETAILS

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 10

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 11 Multiple parameter optional

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 12

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 13 Suitable for harsh environment

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 14

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 15 Multiple output optional

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 16

Rika Sensors perfect low cost weather station manufacturer for soil temperature measurement 17 Easy calibration

PRODUCT APPLICATION

Courtyard

Ships

Port

Automatic Weather Station

Tunnels

Scenic Spot

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
