Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.
Rika Sensors perfect portable weather station equipment manufacturer for humidity parameters measurement
PRODUCT DESCRIPTION

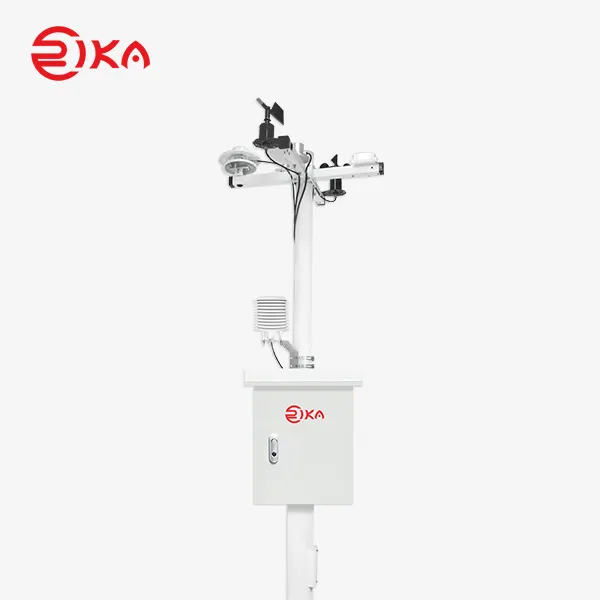

RK900-01 Automatic Weather Station is used for atmospheric temperature, relative humidity, atmospheric pressure,wind speed & direction,solar radiation,light,rainfall,soil temperature and humidity parameters measurement.The station consists of various types of sensors, LCD screen, meteorological data collector, chassis, support and other parts.It can be widely used in meteorology, hydrology, agriculture, forestry, scientific research and other fields.
SPECIFICATIONS
Parts | Details | Note |
Data logger | Meteorological data collection, display, storage and communications | |
Sensors & cable | Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, atmospheric pressure, rainfall, solar radiation, soil temperature, soil moisture,etc. (Optional according to user’s requirements) | |
Meteorological monitoring software | Use to real-time display, analysis and storage data on the PC | Attached |
Used to install the atmospheric temperature, atmospheric humidity and atmospheric pressure sensors | ||
Tripod & accessories | Height: 2.5m typ.,304SS or | |
Protective box | Used to install data logger, solar charge controller and battery, stainless steel or steel with coating | |
110VAC/220VAC adapter | Optional when using AC power supply | |
RS232 cable | 2m | |
RS485 cable | 2m | |
USB to RS232 converter | Used to connect PC without RS232 serial port | |
RS232-RS485 converter | Signal Conversion for RS485 and RS232 | |
U disk | Used for data storage | optional |
GPRS module | Used for wireless data transmission, need to match with the local mobile communication network | optional |
WIFI module | Used for wireless data transmission, need for wireless networking | optional |
Ethernet module | Used for wireless data transmission, need for cable network | optional |
LED screen | Size and display content can be customized | optional |
Solar power supply system | Include photovoltaic panels(60W), solar charge controller, 38AH battery (Can't be transported by air. Suggest users to bring their own) | optional |
Lightning protection device | Contain the lightning rod, connecting wires and grounding angle steel | optional |
Windbreak wire | Used for fixing 10m support rod | |
Base fixed steel cage | Used for fixing 10m support rod |
TYPICAL APPLICATION & TECHNICAL SPECIFICATION
- General weather station
Measure item | Measure range | Resolution | Accuracy |
Wind speed | 0-45m/s | 0.1m/s | ± (0.3±0.03V)m/s |
Wind direction | 0-360º | 1° | ±3° |
Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
Atmospheric pressure | 100-1100hPa | 0.1hpa | ±0.3hPa |
Rainfall | 0-8mm/min | 0.2mm | ±4% |
Solar radiation | 0-2000W/m2 | 1W/m2 | ±5% |
- Photovoltaic power generation weather station
Measure item | Measure range | Resolution | Accuracy |
Wind speed | 0-45m/s | 0.1m/s | ± (0.3±0.03V)m/s |
Wind direction | 0-360º | 1° | ±3° |
Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
Atmospheric pressure | 100-1100hPa | 0.1hpa | ±0.3hPa |
PV temperature sensor | -40-+60℃ | 0.1℃ | ±0.5℃ |
Total solar radiation | 0-2000W/m2 | 1W/m2 | ±3% |
Rainfall(optional) | 0-8mm/min | 0.2mm | ±4% |
Hall current sensor(optional) | 0-500V | 1V | ±0.5% |
Hall voltage sensor(optional) | 0-150A | 0.1A | ±0.5% |
- Agricultural weather station
Measure item | Measure range | Resolution | Accuracy |
Wind speed | 0-45m/s | 0.1m/s | ± (0.3±0.03V)m/s |
Wind direction | 0-360º | 1° | ±3° |
Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
Atmospheric pressure | 100-1100hPa | 0.1hpa | ±0.3hPa |
Solar radiation | 0-2000W/m2 | 1W/m2 | ±5% |
PAR sensor | 0-2500μ*mol*m-2*s-1 | 1μ*mol*m-2*s-1 | ±1% |
Rainfall | 0-8mm/min | 0.2mm | ±4% |
Soil temperature | -30-+70℃ | 0.1℃ | ±0.5℃ |
Soil moisture | 0-100% | 1% | ±3% |
CO2(optional) | 0-5000ppm | 1ppm | ±3% |
Soil PH(optional) | 0-14PH | 0.1PH | ±0.1PH |
Soil salinity(optional) | 0-15000mg/L | 1mg/L | ±5% |
Soil EC(optional) | 0-20mS/cm | 0.1mS/cm | ±5% |
- Greenhouse comprehensive monitoring station
Measure item | Measure range | Resolution | Accuracy |
Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
Atmospheric pressure | 100-1100hPa | 0.1hpa | ±0.3hPa |
CO2 | 0-5000ppm | 1ppm | ±3% |
Illuminance | 0-200000lux | 1lux | ±7% |
Soil temperature | -30-+70℃ | 0.1℃ | ±0.5℃ |
Soil moisture | 0-100% | 1% | ±3% |
Solar radiation(optional) | 0-2000W/m2 | 1W/m2 | ±5% |
PAR sensor(optional) | 0-250μ*mol*m-2*s-1 | 1μ*mol*m-2*s-1 | ±1% |
Soil PH(optional) | 0-14pH | 0.1pH | ±0.1pH |
Soil salinity(optional) | 0-15000mg/L | 1mg/L | ±5% |
Soil EC(optional) | 0-20mS/cm | 0.01mS/cm | ±5% |
- Scenic area weather station
Measure item | Measure range | Resolution | Accuracy |
Wind speed | 0-45m/s | 0.1m/s | ± (0.3±0.03V)m/s |
Wind direction | 0-360º | 1° | ±3° |
Atmospheric temperature | -40-+60℃ | 0.1℃ | ±0.5℃ |
Atmospheric humidity | 0-100%RH | 0.1%RH | ±3% |
Atmospheric pressure | 100-1100hPa | 0.1hpa | ±0.3hPa |
Rainfall | 0-8mm/min | 0.2mm | ±4% |
UV radiation | 0-200W/m2 | 1W/m2 | ±5% |
Ground temperature | -50-+100℃ | 0.1℃ | ±0.5℃ |
- Notice
1.The measurement items can be increased or deleted in the table;
2.Measured data is automatically recorded and stored for download analysis;
3.If there are other functional requirements, we can provide customized solutions.
