Rika Sensors portable meteorological station solution provider for humidity parameters measurement

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

1 PCS

Model:

RK900-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

PRODUCT DESCRIPTION

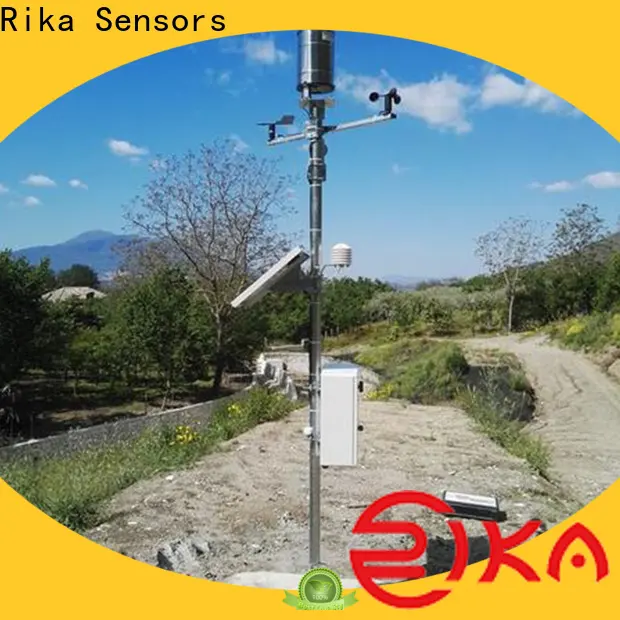

RK900-01 Automatic Weather Station is used for atmospheric temperature, relative humidity, atmospheric pressure,wind speed & direction,solar radiation,light,rainfall,soil temperature and humidity parameters measurement.The station consists of various types of sensors, LCD screen, meteorological data collector, chassis, support and other parts.It can be widely used in meteorology, hydrology, agriculture, forestry, scientific research and other fields.

Rika Sensors portable meteorological station solution provider for humidity parameters measurement 2

Rika Sensors portable meteorological station solution provider for humidity parameters measurement 3

High accuracy

Strong resistance to harsh environment

Convenient data download

Automatic storage and backup

Solar power supply optional

All-metal construction of bracket

SPECIFICATIONS

Parts	Details	Note
Data logger	Meteorological data collection, display, storage and communications
Sensors & cable	Wind speed sensor, wind direction sensor, atmospheric temperature, atmospheric humidity, atmospheric pressure, rainfall, solar radiation, soil temperature, soil moisture,etc. (Optional according to user's requirements)
Meteorological monitoring software	Use to real-time display, analysis and storage data on the PC	Attached
Multi-plate radiation shield	Used to install the atmospheric temperature, atmospheric humidity and atmospheric pressure sensors
Tripod & accessories	Height: 2.5m typ.,304SS or Height: 10m(4m+3m+3m) steel with coating is optional other height is optional
Protective box	Used to install data logger,solar charge controller and battery, stainless steel or steel with coating
110VAC/220VAC adapter	Optional when using AC power supply
RS232 cable	2m
RS485 cable	2m
USB to RS232 converter	Used to connect PC without RS232 serial port
RS232-RS485 converter	Signal Conversion for RS485 and RS232
U disk	Used for data storage	optional
GPRS module	Used for wireless data transmission, need to match with the local mobile communication network	optional
WIFI module	Used for wireless data transmission,need for wireless networking	optional
Ethernet module	Used for wireless data transmission,need for cable network	optional
LED screen	Size and display content can be customized	optional
Solar power supply system	Include photovoltaic panels(30W), solar charge controller, 25AH battery(Can't be transported by air. Suggest users to bring their own)	optional
Lightning protection device	Contain the lightning rod, connecting wires and grounding angle steel	optional
Windbreak wire	Used for fixing 10m support rod
Base fixed steel cage	Used for fixing 10m support rod

Note:10 m support is recommended for mountainous area or surrounding area with high buildings.

TYPICAL APPLICATION & TECHNICAL SPECIFICATION

General weather station:

Measure item	Measure range	Resolution	Accuracy
Wind speed	0-45m/s	0.1m/s	±（0.3±0.03V）m/s
Wind direction	0-360º	1°	±3°
Atmospheric temperature	-50-+100℃	0.1℃	±0.5℃
Atmospheric humidity	0-100%RH	0.1%RH	±3%
Atmospheric pressure	10-1100hPa	0.1hpa	±0.3hPa
Rainfall	0-8mm/min	0.2mm	±4%
Solar radiation	0-2000W/m2	1W/m2	±5%

Photovoltaic power generation weather station:

Measure item	Measure range	Resolution	Accuracy
Wind speed	0-45m/s	0.1m/s	±（0.3±0.03V）m/s
Wind direction	0-360º	1°	±3°
Atmospheric temperature	-50-+100℃	0.1℃	±0.5℃
Atmospheric humidity	0-100%RH	0.1%RH	±3%
Atmospheric pressure	10-1100hPa	0.1hpa	±0.3hPa
Photovoltaic panels temperature sensor	-50-+100℃	0.1℃	±0.5℃
Total solar radiation	0-2000W/m2	1W/m2	±3%
Rainfall(optional)	0-8mm/min	0.2mm	±4%
Hall current sensor(optional)	0-500V	1V	±0.5%
Hall voltage sensor(optional)	0-150A	0.1A	±0.5%

Agricultural weather station:

Measure item	Measure range	Resolution	Accuracy
Wind speed	0-45m/s	0.1m/s	±（0.3±0.03V）m/s
Wind direction	0-360°	1°	±3°
Atmospheric temperature	-50-+100℃	0.1℃	±0.5℃
Atmospheric humidity	0-100%RH	0.1%RH	±3%
Atmospheric pressure	10-1100hPa	0.1hpa	±0.3hPa
Solar radiation	0-2000W/m2	1W/m2	±5%
PAR sensor	0-2500μmolm2*s	1μmolm2*s	±1%
Rainfall	0-8mm/min	0.2mm	±4%
Soil temperature	-50-+80℃	0.1℃	±0.5℃
Soil moisture	0-100%	1%	±3%
CO2(optional)	0-5000ppm	1ppm	±3%
Soil PH(optional)	0-14PH	0.1PH	±0.1PH
Soil salinity(optional)	0-15000mg/L	1mg/L	±5%
Soil EC(optional)	0-20mS/cm	0.1mS/cm	±5%

Greenhouse comprehensive monitoring station:

Measure item	Measure range	Resolution	Accuracy
Atmospheric temperature	-50-+100℃	0.1℃	±0.5℃
Atmospheric humidity	0-100%RH	0.1%RH	±3%
Atmospheric pressure	10-1100hPa	0.1hpa	±0.3hPa
CO2	0-5000ppm	1ppm	±3%
Illuminance	0-200000lux	1lux	±7%
Soil temperature	-50-+80℃	0.1℃	±0.5℃
Soil moisture	0-100%	1%	±3%
Solar radiation(optional)	0-2000W/m2	1W/m2	±5%
PAR sensor(optional)	0-250μmolm2*s	1μmolm2*s	±1%
Soil PH(optional)	0-14PH	0.1PH	±0.1PH
Soil salinity(optional)	0-15000mg/L	1mg/L	±5%
Soil EC(optional)	0-20mS/cm	0.01mS/cm	±5%

Scenic area weather station:

Measure item	Measure range	Resolution	Accuracy
Wind speed	0-45m/s	0.1m/s	±（0.3±0.03V）m/s
Wind direction	0-360º	1°	±3°
Atmospheric temperature	-50-+100℃	0.1℃	±0.5℃
Atmospheric humidity	0-100%RH	0.1%RH	±3%
Atmospheric pressure	10-1100hPa	0.1hpa	±0.3hPa
Rainfall	0-8mm/min	0.2mm	±4%
Uv radiation	0-200W/m2	1W/m2	±5%
Ground temperature	-50-+80℃	0.1℃	±0.5℃

Notice:

1.The measurement items can be increased or deleted in the table;

2.Measured data is automatically recorded and stored for download analysis;

3.If there are other functional requirements, we can provide customized solutions.

PRODUCT DETAILS

PRODUCT APPLICATION

Agricultural

Solar PV Industry

Hydrological Monitoring

Highways And Railways

Meteorological Science Research

Courtyard

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
