 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors professional wind meter solution provider for industrial applications 1
Rika Sensors professional wind meter solution provider for industrial applications 1

Rika Sensors professional wind meter solution provider for industrial applications

Payment:
T/T, L/C or Paypal
MOQ:
1PCS
Model:
RK120-01C
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

PRODUCT DESCRIPTION

Rika Sensors professional wind meter solution provider for industrial applications 2

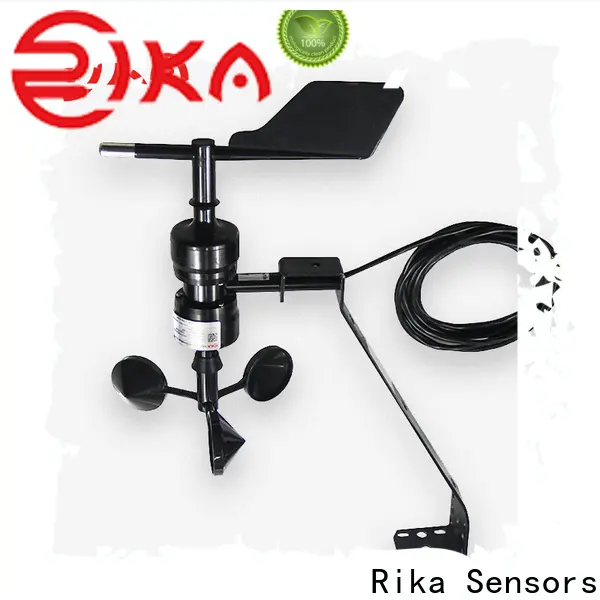

RK120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation.The wind speed part adopts the traditional three-wind cup structure, the wind cup is made of carbon fiber material, the starting performance is good, the measuring range is large, the linearity is good, stable and reliable.The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.

Rika Sensors professional wind meter solution provider for industrial applications 3

SPECIFICATIONS


Item

Technical Specification


Wind speed

Wind direction

Range

0-45m/s(current or voltage ouput);


0-70m/s(pulse,RS485,RS232 output)

0-360°

Resolution

0.1m/s

Accuracy

±(0.3+0.03V)m/s ,V is current wind speed

≤±3°

Acquisition Cycle

3s

Starting wind speed

0.5m/s

Limited wind speed

75m/s

Supply

5V(only for digital output),12-24VDC

Output Signal

RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed)

Operating Temperature

-40℃-+70℃

Ingress Protection

IP65

Main material

Aluminum alloy and carbon fiber

                 Cups:PA, reinforced with carbon fibre, black

              Vane:PA, reinforced with fiberglass, white


Storage10-60℃@20%-90%RH
Cable lengthDefault 2.5m,other length is optional
Installation bracketattached
Weight(unpacked)700g




DIMENSION & MOUNTING

Unit:mm
Unit:mm

Unit:mm

PRODUCT DETAILS

Rika Sensors professional wind meter solution provider for industrial applications 12

Rika Sensors professional wind meter solution provider for industrial applications 13Product Principle & Output

Rika Sensors professional wind meter solution provider for industrial applications 14

Rika Sensors professional wind meter solution provider for industrial applications 15 Product Material

PRODUCT MOUNTING

Rika Sensors professional wind meter solution provider for industrial applications 16

PRODUCT APPLICATION
