Rika Sensors radiation shield weather factory

Company Advantages
1. The design of Rika Sensors radiation shield weather is designed by our R&D team based on an analysis of the market situation. The design is reasonable and can maximize the overall performance for a wider application. This product allows for an easy installation
2. The product is closely concerned with the manufacture of metallic components or parts in the consumer goods or engineering products. It has the advantage of high intensity
3. It has high-grade fibers that suck up moisture, which helps regulate body temperature to provide a better sleep experience. This product has been widely used for air quality monitoring, hydrological monitoring, and water treatment

Company Features
1. Advanced production machine is the reliable guarantee of Hunan Rika Electronic Tech Co.,Ltd 's product quality.
2.  Lifetime warranty & Technical support in a lifetime are promised for our radiation shield weather . Welcome to visit our factory!

PRODUCT DESCRIPTION

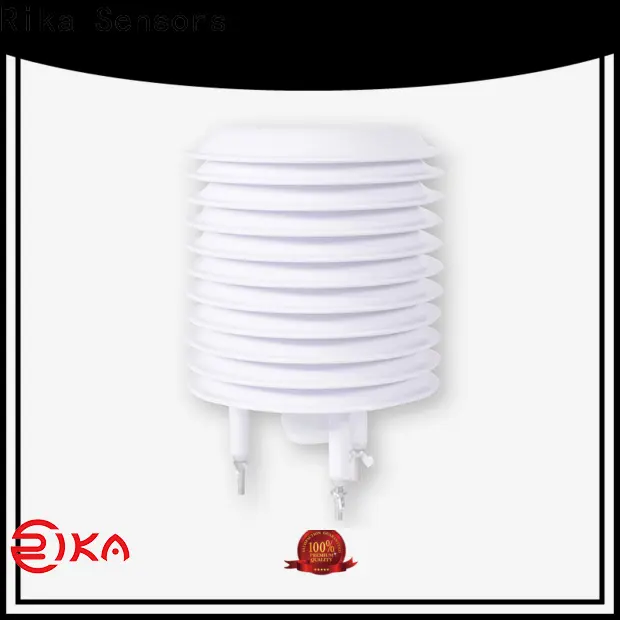

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.

Compact size for easy use

Auto-heating function

Excellent stability

Simple operation screen

All 304 stainless steel material （Unit:mm）

Waterproof Glands Specifications

Plates	Inner space(mm)	D1(mm)	H1(mm)	H2(mm)
4	ø62*45	140	51	approx.55
5	ø62*57	140	64	approx.55
6	ø62*70	140	76	approx.55
7	ø62*82	140	89	approx.55
8	ø62*95	140	101	approx.55
9	ø62*107	140	114	approx.55
10	ø62*120	140	126	approx.55
11	ø62*132	140	139	approx.55
12	ø62*145	140	151	approx.55
13	ø62*157	140	164	approx.55
14	ø62*170	140	176	approx.55
15	ø62*182	140	189	approx.55
16	ø62*195	140	201	approx.55
17	ø62*207	140	214	approx.55
18	ø62*220	140	226	approx.55
19	ø62*232	140	239	approx.55
20	ø62*245	140	251	approx.55

PG  Glands
Model	Cable/Sensor Diameter(mm)
PG7	3-6.5
PG9	4-8
PG11	5-10
PG13.5	6-12
PG16	10-13
PG19	12-15
PG21	13-18
PG25	16-21
PG29	18-25
PG36	22-32

Enhanced UV resistance plastic

 Plates quantity

Support & Mounting

Connectors for sensors

Agriculture Weather Station

Automatic weather station

PV Station

Scenic Spot

Schoolyard Weather Station

Weather Station
