Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors soil ec sensor supplier for detecting soil conditions

Payment:

T/T, L/C or Paypal

MOQ:

1 PCS

Model:

RK510-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Company Advantages
1. The manufacture of Rika Sensors soil ec sensor adopts a professional grade, flexible projection screen material. This kind of material is engineered for performance. This product allows for an easy installation
2. Owing to the good characteristics, the product has met with warm reception and quick sale in the market. This product requires low maintenance during its lifespan
3. The product features great chemical resistance. It can maintain its original properties after being exposed to a chemical environment for a specified time period. This product is a great detection helper for many engineers

Company Features
1. Hunan Rika Electronic Tech Co.,Ltd has been focused on the production of soil ec sensor for many years. The utilization of technology will do a great help to the production of a good quality soil sensor .
2. There is no doubt that quality for soil temperature probe is the most important.
3. Rika Sensors has been focused on the quality of fdr soil moisture sensor since its establishment. To attract customers' attention is also one of the goal for Rika Sensors. Get quote!

PRODUCT DESCRIPTION

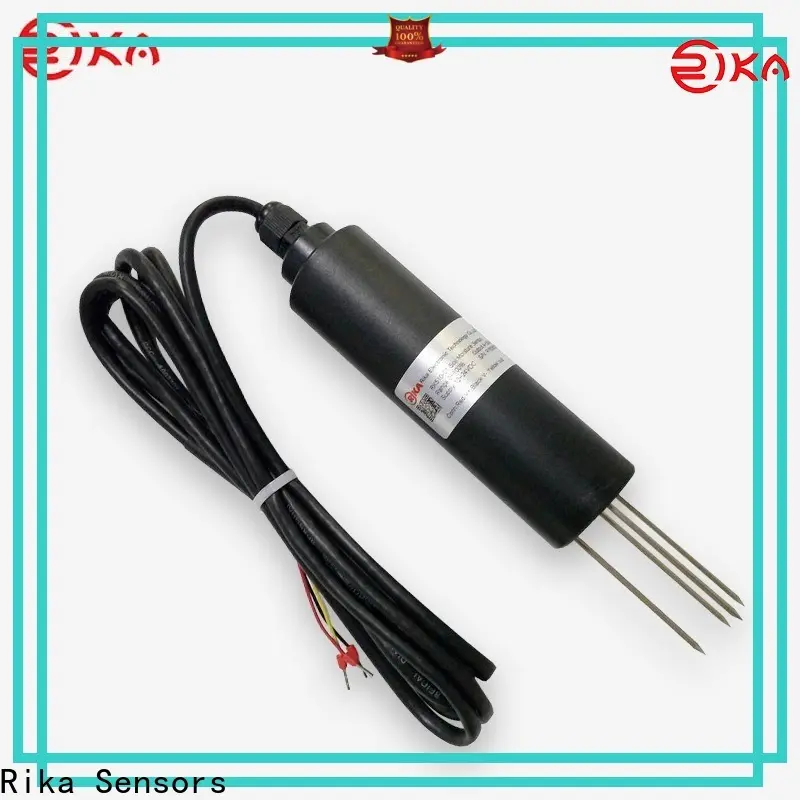

RK510-01 is a high accuracy, high sensitivity of soil moisture measuring instrument.The product on the principle of electromagnetic pulse (FDR:Frequency Domain Reflectometry) to measure the dielectric constant of the soil, stainless steel probe is inserted into the soil surface or soil profile to quickly online measurement of soil volumetric moisture content, the method is the most popular method of soil moisture measurement.It can be used permanently embedded in the soil.Soil moisture sensor can be widely applied to the soil moisture monitoring, water-saving irrigation, greenhouse control, fine agriculture, hydrology and meteorology, and other fields, road monitoring.

Rika Sensors soil ec sensor supplier for detecting soil conditions 2

SPECIFICATIONS

Item	Technical Specification

Range	0-100%,0-50%,0-30%,
Accuracy	±2%(0-50%)
Output Signal	4-20mA ,0-5V,0-2V,RS485 optional
Response Time	<1s
Supply	5VDC, 12-24VDC
Effective measurement area	With the center of the probe diameter is 70mm, high 70mm cylinder
Housing	ABS
Dimensions	Ø50208mm(probe:Ø478mm)
Operating Temperature	-30℃-+70℃
Ingress Protection	IP67
Storage	10-60℃@20%-90%RH
Probe material	316L stainless steel

DIMENSION

PRODUCT DETAILS

Rika Sensors soil ec sensor supplier for detecting soil conditions 10

Rika Sensors soil ec sensor supplier for detecting soil conditions 11 Product Material

Rika Sensors soil ec sensor supplier for detecting soil conditions 12

Rika Sensors soil ec sensor supplier for detecting soil conditions 13 Product working principle

Rika Sensors soil ec sensor supplier for detecting soil conditions 14

Rika Sensors soil ec sensor supplier for detecting soil conditions 15 Product function

PRODUCT APPLICATION

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
