 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors top rated automatic rain gauge price industry 1
Rika Sensors top rated automatic rain gauge price industry 1

Rika Sensors top rated automatic rain gauge price industry

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK400-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

Company Advantages
1. Rika Sensors undergoes a final scrutinization of various aspects. They involve workmanship, appearance, measurement/fittings, fabrics, seam, and stitching quality. Even in the harsh climatic conditions, this product can detect the best result
2. Because the product only needs several workers to operate, hence, the use of this product helps manufacturers to reduce costs in labor. This product allows for an easy installation
3. Its technical parameters are in line with International standards and guidelines. This product has been certified under CE and RoHS

Company Features
1. After many years of solid development, Hunan Rika Electronic Tech Co.,Ltd mainly focus on R&D, designing, producing, and marketing of .
2.  Our factory has imported some of the industry’s most advanced production facilities. This allows our products to be produced at very high speeds and up to exacting specifications.
3.  Rika Sensors brand commits to the wonderful vision of being a competitive automatic rain gauge price manufacturer. Please contact us!


PRODUCT DESCRIPTION

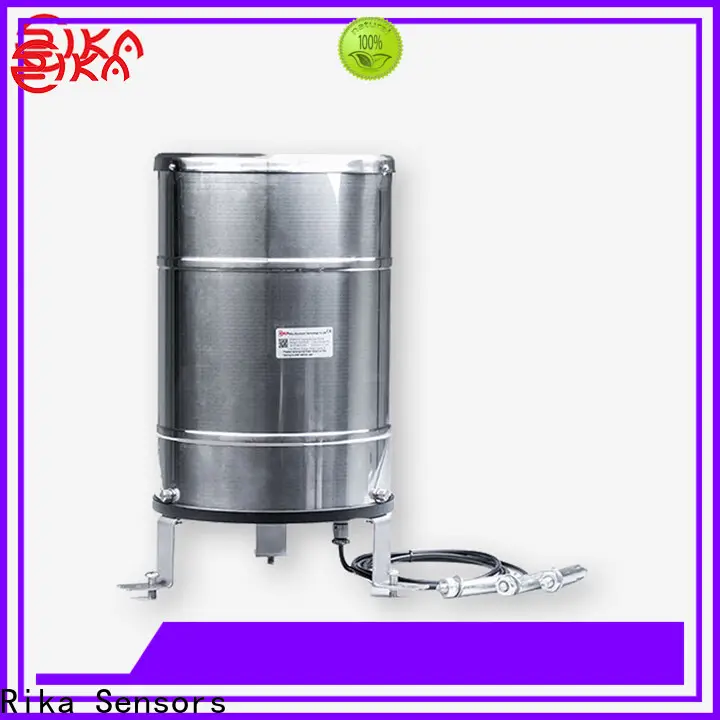

The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

Rika Sensors top rated automatic rain gauge price industry 2

SPECIFICATIONS

Item

Specification

Rainfall collector

Diameter :φ200mm, height: 350mm

Measured rainfall intensity

Max: 4mm/min

Allow rainfall intensity

Max: 10mm/min

Resolution

0.1mm, 0.2mm

Accuracy(2mm/min)

±4%

Maximum load voltage

30VDC(pulse output)

Maximum load current

20mA(pulse output)

Output

Reed switch pulses,RS485(12-24VDC supply)

Operating temperature(no freeze)

-20-+80℃

Main material

Collector:304SS,tipping bucket:ABS

Tipping bucket

Single

Heating(optional)

Heating power: approx.350W
     Heating voltage:220VAC

Collector filter

Removable filter (prevent leaves and sundries)optional

Weight(unpacked)

3.5kg

WORKING PROCESS & DIMENSION

PRODUCT DETAILS

Rika Sensors top rated automatic rain gauge price industry 11

Rika Sensors top rated automatic rain gauge price industry 12Product Principle & Material

Rika Sensors top rated automatic rain gauge price industry 13

Rika Sensors top rated automatic rain gauge price industry 14 Product Feature

Rika Sensors top rated automatic rain gauge price industry 15

Rika Sensors top rated automatic rain gauge price industry 16Product Feature

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
