Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.
Rika Sensors top rated soil ph probe manufacturer for soil monitoring
Payment:
T/T, L/C or Paypal
MOQ:
1PCS
Model:

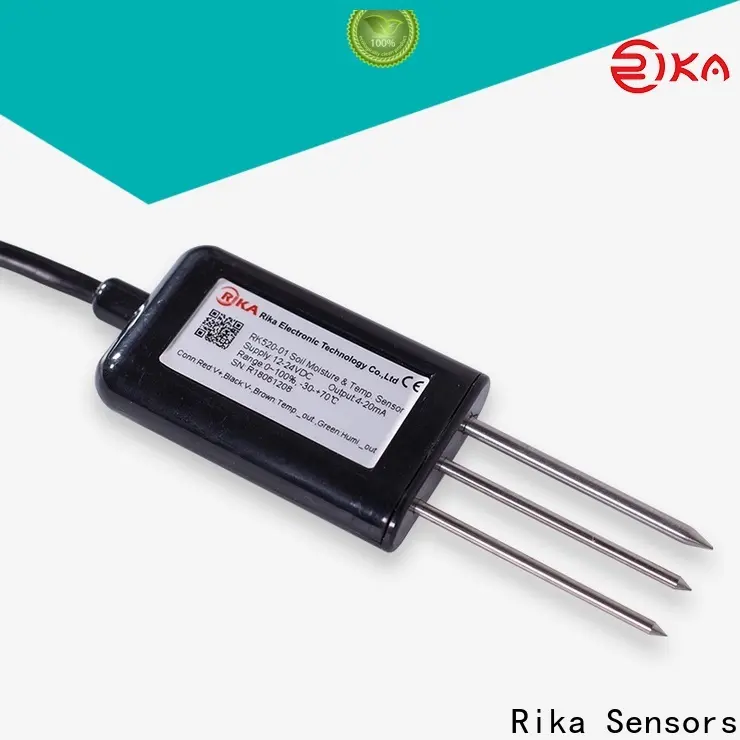

RK520-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Item | Technical Specification | ||
Moisture | Temperature | ||
Range | 0-100%（m3/m3） | -30℃-+70℃ | |
Accuracy | ±3%(0-50%) | ±0.3℃ | |
Output Signal | 4-20mA ,0-5V,0-2V,RS485 optional | ||
Response Time | <1s | ||
Supply | 5VDC, 12-24VDC | ||
Effective measurement area | With the center of the probe diameter is 70mm, high 70mm cylinder | ||
Housing | ABS | ||
Dimensions | 71*45*16mm( probe:2* Ø3*55mm,1*Ø4*55mm) | ||
Operating Temperature | -40℃-+80℃ | ||
Ingress Protection | IP68 | ||
Storage | 10-60℃@20%-90%RH | ||
Probe material | 316L stainless steel | ||
1.Testing medium should be with uniform intensity.
2. If surface soil water content measurement, the sensor should be insert into soil vertically. Do not shake the sensor when inserted, otherwise the probe will be blended;
3. If multi-layer soil water content measurement, the sensor should be buried in the soil and parallel to the ground. Make sure the probe not be blended;
4. When removing sensors from the soil, please hold the sensor housing shell and do not forcibly pull on the cable. Soil on probes should be brushed tightly.
5. Please keep the sensor in dry & clean conditions.
