Rika Sensors top rated water quality monitoring sensors industry for water level monitoring

Rika Sensors top rated water quality monitoring sensors industry for water level monitoring

Model:
RK500-12
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika Sensors top rated water quality monitoring sensors industry for water level monitoring

Company Advantages
1. All wooden panels used in Rika Sensors are produced in our own China factory, from processing and shaping, covering and painting and polishing. Its built-in signal processing unit can correctly output a corresponding signal
2. The product is robust and flexible enough to handle various kinds of pressure and conditions associated with industrial applications. Even in the harsh climatic conditions, this product can detect the best result
3. This product is regarded as a green and eco-friendly product. It contains no heavy metals which may cause pollution. This product has the ability to resist strong corrosion
4. The product features resistance to repeated sterilization. It can endure repeated sterilization cycles such as chemical, steam or gamma radiation sterilization without significant damage. This product has been certified under CE and RoHS

Company Features
1. As a new water quality monitoring sensors production base, Hunan Rika Electronic Tech Co.,Ltd is rising.
2.  Hunan Rika Electronic Tech Co.,Ltd includes a set of product layout elites with abundant marketplace expertise.
3.  Rika Sensors aims to satisfy every customer with first-class quality and service. Contact!

PRODUCT DESCRIPTION

RK500-12 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

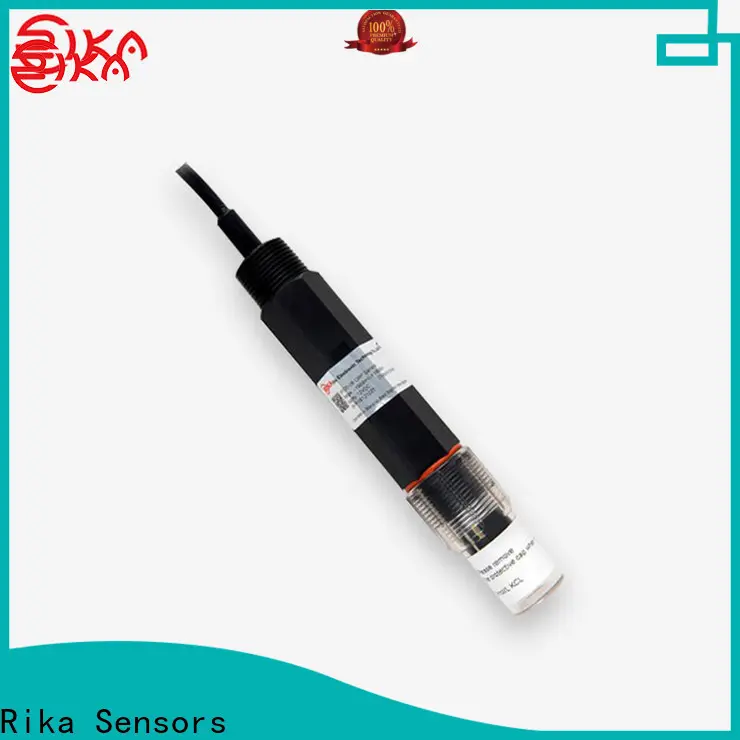

Rika Sensors top rated water quality monitoring sensors industry for water level monitoring-1

SPECIFICATIONS

Item

Technical Specification

Measurement Principle

Electrochemistry

Range

0-14PH

Supply

7-30VDC(power consumption<0.2W)

Accuracy

±0.05PH

Resolution

0.01PH

Temperature Compensation

Temperature compensation is optional

Response time

<8s(flowing liquid), <14s(stationary liquid)

Stability

≤0.01PH/24h

Output Signal

4-20mA & RS485 at the same time

Calibration Cycle

Every 6 month(General water )
     Every 3 month or shorter(Seriously polluted water )

Operating Environment

0-+80℃(<0.6MPa), high pressure is customizable

Cable length

5m(default),customizable

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

PH SCALE

PH value

Description

PH value

Description

<4.5

Strongly acidity

7.5-8.5

Faintly alkalinity

4.5-5.5

Acidity

8.5-9.5

Alkalinity

5.5-6.5

Faintly acidity

>9.5

Strongly alkalinity

6.5-7.5

Neutral



DIMENSION

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional
