Rika Sensors top rated weather station solar radiation sensor factory for hydrological weather applications

Rika Sensors top rated weather station solar radiation sensor factory for hydrological weather applications

Model:
RK220-01
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika Sensors top rated weather station solar radiation sensor factory for hydrological weather applications


PRODUCT DESCRIPTION

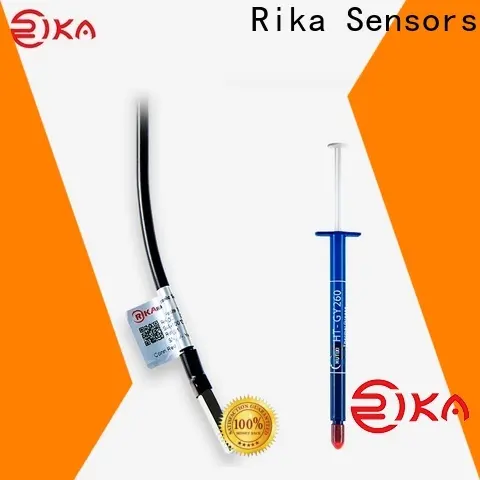

RK220-01 Paste Type Temperature Sensor adopts high precision thermistor as the sensing component. It is with high accuracy, good stability. The signal conversion module can convert temperature to corresponding voltage, current or RS485 optionally. RK220-01 Past type temperature sensor is compact, easy-to-install, with good linearity, strong load capacity, long transmission distance and good anti- interference ability.

Rika Sensors top rated weather station solar radiation sensor factory for hydrological weather applications-1

SPECIFICATIONS

Item

Specification

Range

-50-+100℃, -20-+50℃

Supply Voltage

5VDC,12-24VDC

/

Accuracy

±0.5℃

±0.3℃

Output

4-20mA

0-5VRS485PT100/PT1000 3-wires

Load Capacity

≤250Ω

≥1K//

Ingress Protection

IP65

Operating Temperature

Probe: -50℃-+120℃

Conversion module:-40℃-+85℃

Weight(unpacked)

Probe: 85g

Transmitter  module dimension

98*66*49mm or Ф25*120mm

Storage Condition

10℃-60℃@20%-90%RH

Surface mount adhesive

Attached


DIMENSION

Probe: 8*8*30mm

Rika Sensors top rated weather station solar radiation sensor factory for hydrological weather applications-8

PRODUCT APPLICATION
