 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika Sensors top rated wind speed metre industry for meteorology field 1
Rika Sensors top rated wind speed metre industry for meteorology field 1

Rika Sensors top rated wind speed metre industry for meteorology field

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2PCS
Model:
RK120-07
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

Company Advantages
1. Each production procedure of Rika Sensors is well-controlled by professional QC team. This product allows for an easy installation
2. Hunan Rika Electronic Tech Co.,Ltd has established complete quality control system and to ensure quality of wind speed metre . This product is highly resistant to seawater, which makes it applicable in coastal regions
3. We adopt the most stringent quality management system to ensure product quality and stability. This product has been widely used for air quality monitoring, hydrological monitoring, and water treatment
4. Every production stage is highly valued to achieve high quality of this product. This product is available in various output signals
5. The product is methodically examined to ensure its quality and durability. This product allows for accurate and quick detection

Company Features
1. The designers of Hunan Rika Electronic Tech Co.,Ltd have a fantastic comprehension of this wind speed metre industry.
2.  Rika Sensors wishes to be favored by each customer. Get an offer!


PRODUCT DESCRIPTION

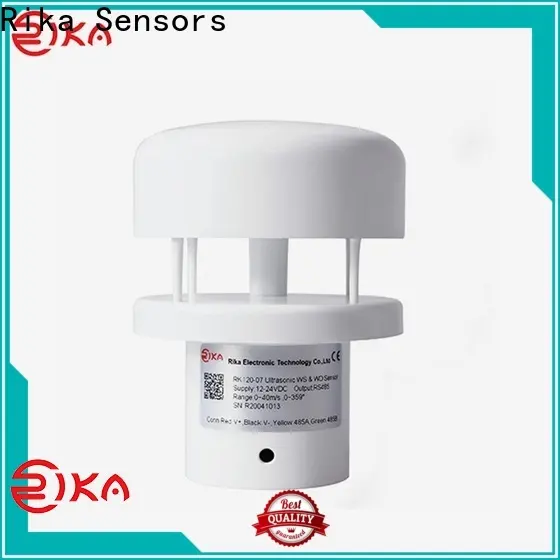

RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.

    Rika Sensors top rated wind speed metre industry for meteorology field 2

    SPECIFICATIONS

    Item

    Technical Specification

    Power Supply

    12-24VDC

    Power consumption

    1.7W

    Output Signal

    RS232/RS485(Modbus/NMEA-0183),SDI-12

    Operating Temperature

    -30℃-+60℃

    Ingress Protection

    IP65

    Dimension

    Ф82*108mm

    Weight(unpacked)

    0.8kg

    Main material

    ABS


    Item

    Technical Specification

    Range

    Resolution

    Accuracy

    Wind Speed

    0-40m/s

    0.1m/s

    ±3%

    Wind Direction

    0-360°

    ±3°

    Starting Threshold0.1m/s
    0.1m/s        -
    Extreme Wind Speed60m/s


    DIMENSION & MOUNTING

    Step1:

    Positioning: generally, RK120-07 is installed in a vertical installation pipe .ensure the measurement on the same level.

    For indoor use, the sensor can be used at any where .Directional installation to measure wind speed on different planes.

    Step2:

    There is rotary adjustable mounting holes at the bottom of the senor,when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

    Step3:

    Installation: the installation pipe needs 3 equally spaced holes, tapping M5 screws, position7.5mm from the top of the pipe.


    Rika Sensors top rated wind speed metre industry for meteorology field 9



    Contact us
    we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
