Rika Sensors water ec sensor supplier for conductivity monitoring

Rika Sensors water ec sensor supplier for conductivity monitoring

Model:
RK500-13
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika Sensors water ec sensor supplier for conductivity monitoring


PRODUCT DESCRIPTION

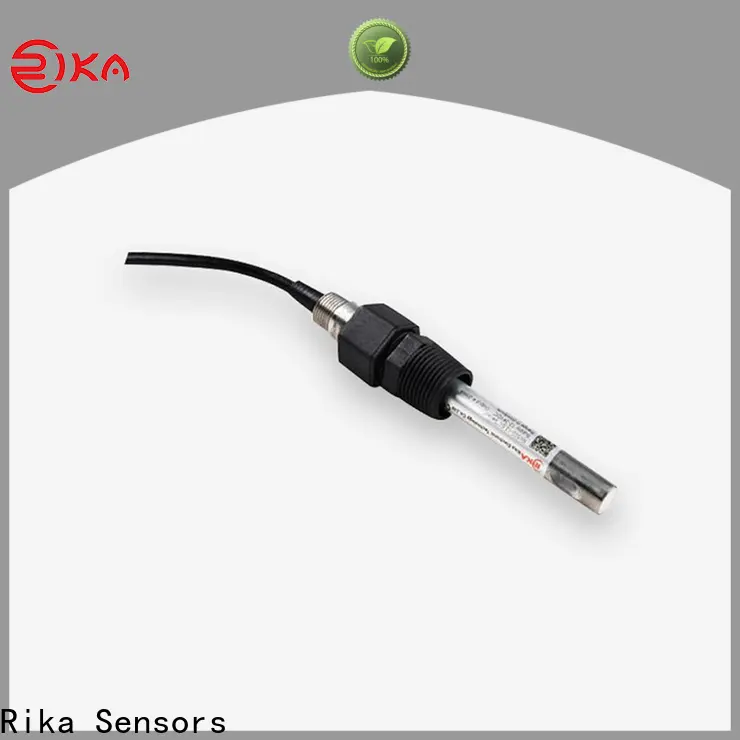

RK500-13 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

Rika Sensors water ec sensor supplier for conductivity monitoring-1

SPECIFICATIONS

Item

Technical Specification

EC

Salinity

Measuring medium

Liquid

Principle

Frequency conversion method

Range

0~500us/cm, 0~5000us/cm, 0~10000us/cm, 0~200000us/cm(any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm)

0~100000ppm(mg/L)
     1ppm(mg/L)=1000ppb(ug/L)=1000000ppt(ng/L)

Supply

7-30VDC(power consumption<0.2W)

Accuracy

±1%

Response time

1s

Output Signal

4-20mA & RS485 at the same time

Electrode

Titanium alloy


Temperature compensation


Automatic compensation

Drift

≤0.3%FS/24h

Operating Temperature

-20℃-+80℃

Probe material

316L or ABS(Strongly corrosive liquids)

Ingress Protection

IP68

Storage

10-60℃@20%-90%RH

Cable length

Default:5m

DIMENSION

PRODUCT DETAILS

Rika Sensors water ec sensor supplier for conductivity monitoring-10

Rika Sensors water ec sensor supplier for conductivity monitoring-11 Product Principle & Material

Rika Sensors water ec sensor supplier for conductivity monitoring-12

Rika Sensors water ec sensor supplier for conductivity monitoring-13 Temperature Compensated

Rika Sensors water ec sensor supplier for conductivity monitoring-14

Rika Sensors water ec sensor supplier for conductivity monitoring-15 Installation

PRODUCT APPLICATION
