Rika soil ec sensor supplier for detecting soil conditions

Payment:

T/T, L/C or Paypal

MOQ:

1PCS

Model:

RK520-01

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Application Scope

Rika Sensors's environmental monitoring can be used in a variety of industries.Rika Sensors could customize comprehensive and efficient solutions according to customers' different needs.

Product Details

Want to know more product information? We will provide you with detailed pictures and detailed content of environmental sensor in the following section for your reference.environmental sensor, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.

PRODUCT DESCRIPTION

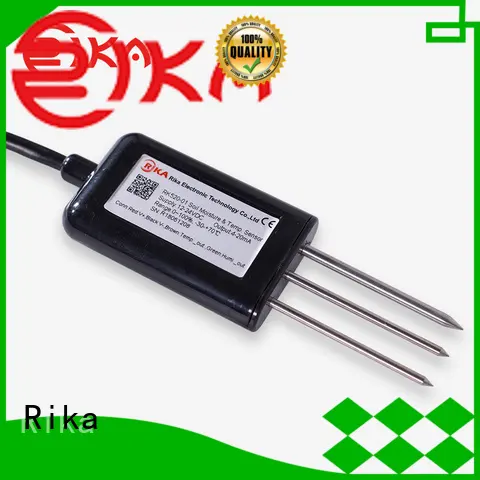

RK520-01 Soil Moisture & Temperature Sensor to integrate the moisture and temperature measurement.The stainless steel probe is inserted into soil surface or soil profile to test soil moisture and temperature quickly. Moisture measurement part is designed on the basis of the principle of FDR, by measuring the dielectric constant of the soil in order to measure the volume of the soil moisture content, temperature part adopts precision platinum resistance element, the product built-in drift calibration and temperature compensation circuit, can adapt to most applications.The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.

Rika soil ec sensor supplier for detecting soil conditions 4

SPECIFICATIONS

Item	Technical Specification
	Moisture	Temperature
Range	0-100%（m3/m3）	-30℃-+70℃
Accuracy	±3%(0-50%)	±0.3℃
Output Signal	4-20mA ,0-5V,0-2V,RS485 optional
Response Time	<1s
Supply	5VDC, 12-24VDC
Effective measurement area	With the center of the probe diameter is 70mm, high 70mm cylinder
Housing	ABS
Dimensions	714516mm( probe:2* Ø355mm,1Ø4*55mm)
Operating Temperature	-40℃-+80℃
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Probe material	316L stainless steel

DIMENSION

Unit:mm

Rika soil ec sensor supplier for detecting soil conditions 11

MOUNTING

Rika soil ec sensor supplier for detecting soil conditions 12

1.Testing medium should be with uniform intensity.
2. If surface soil water content measurement, the sensor should be insert into soil vertically. Do not shake the sensor when inserted, otherwise the probe will be blended;
3. If multi-layer soil water content measurement, the sensor should be buried in the soil and parallel to the ground. Make sure the probe not be blended;
4. When removing sensors from the soil, please hold the sensor housing shell and do not forcibly pull on the cable. Soil on probes should be brushed tightly.
5. Please keep the sensor in dry & clean conditions.

PRODUCT DETAILS

Rika soil ec sensor supplier for detecting soil conditions 13

Rika soil ec sensor supplier for detecting soil conditions 14 Product Principle

Rika soil ec sensor supplier for detecting soil conditions 15

Rika soil ec sensor supplier for detecting soil conditions 16 Water-Proof

Rika soil ec sensor supplier for detecting soil conditions 17

Rika soil ec sensor supplier for detecting soil conditions 18 316SS Probe Material

Rika soil ec sensor supplier for detecting soil conditions 19

Rika soil ec sensor supplier for detecting soil conditions 20 Multi-Layer Soil Measurement

PRODUCT APPLICATION

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
