Rika solar pyranometer solution provider

Rika solar pyranometer solution provider

Model:
RK200-02
MOQ:
2PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika solar pyranometer solution provider
Product Details
With a focus on quality, Rika Sensors pays great attention to the details of environmental sensor.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of environmental sensor. It is of fine workmanship and good quality and is well sold in the domestic market.
  • Rika solar pyranometer solution provider-Rika Sensors-img
Product Comparison
environmental sensor, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.Compared with similar products, Rika Sensors's environmental sensor is more advantageous in the following aspects.
  • Rika solar pyranometer solution provider-Rika Sensors-img
    news-Rika Sensors-img

PRODUCT DESCRIPTION

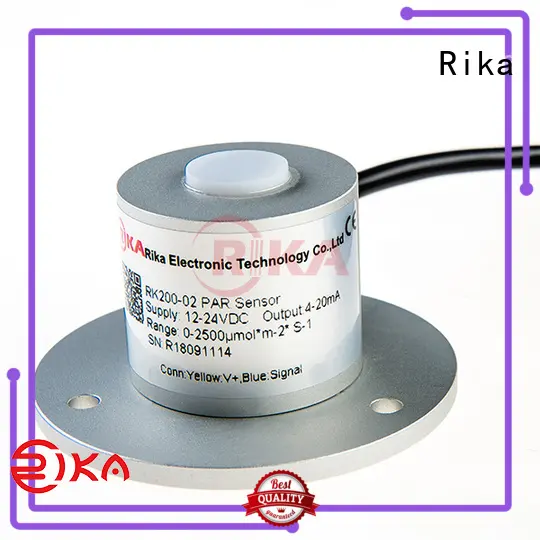

The RK200-02 PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by the silicon-photo detector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol/m2*s.

    Rika solar pyranometer solution provider-1

    SPECIFICATIONS

    Item

    Specification

    Spectral range

    0-2500μ*mol/m2*s

    350-1100nm

    0-2000W/m2400-700nm

    Supply

    5V,12-24VDC

    Accuracy
    ±5% rdg

    Range

    0-2500μ*mol/m2,0-2000W/m2

    Output

    0-2000mV

    4-20mA(2-wires)

    RS485

    Sensitivity

    0-2500μ*mol/m2*s

    0.8mV/μmol*m-2* S-1

    6.4μA/μ*mol*m2*s/
    0-2000W/m21mV/W/m28uA/W/m2/

    Response time

    <1s (99%)

    Temperature effect

    <0.05%/℃

    Cosine correction

    <10% (until 80°)

    Non-linearity

    <±2%

    Operating temperature

    -40℃-+80℃°

    Shell material

    Aluminum alloy

    Storage Condition

    10℃-60℃@20%-90%RH


    OUTPUT CHARACTERISTICS

     0-2000mV

    Range:0-2000W  PAR values(W)= Voltage output value(μV)/1000

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= Voltage output value(μV)/800

     4-20 mA

    Range:0-2000W  PAR values(W)=(I(μA)-4000μA)/8 (Where I is output current value,unit:μA )

    Range:0-2500μ*mol/m2*s  PAR values(μ*mol/m2*s)= (I(μA)-4000μA)/6.4(Where I is output current value,unit:μA )

     RS485

    MODBUS-RTU

    DIMENSION

    Rika solar pyranometer solution provider-8

    In order to ensure measurement accuracy, please keep the horizontal installation.


    PRODUCT DETAILS

    Rika solar pyranometer solution provider-9

    Rika solar pyranometer solution provider-10Product Principle

    Rika solar pyranometer solution provider-11

    Rika solar pyranometer solution provider-12 Product Range

    Rika solar pyranometer solution provider-13

    Rika solar pyranometer solution provider-14Product Output Optional

    Rika solar pyranometer solution provider-15

    Rika solar pyranometer solution provider-16Product Installation

    PRODUCT APPLICATION
