    RK500-11 Liquid temperature sensor specification v
    RK500-11 Liquid temperature sensor specification v
    PDF Download

    PRODUCT DESCRIPTION

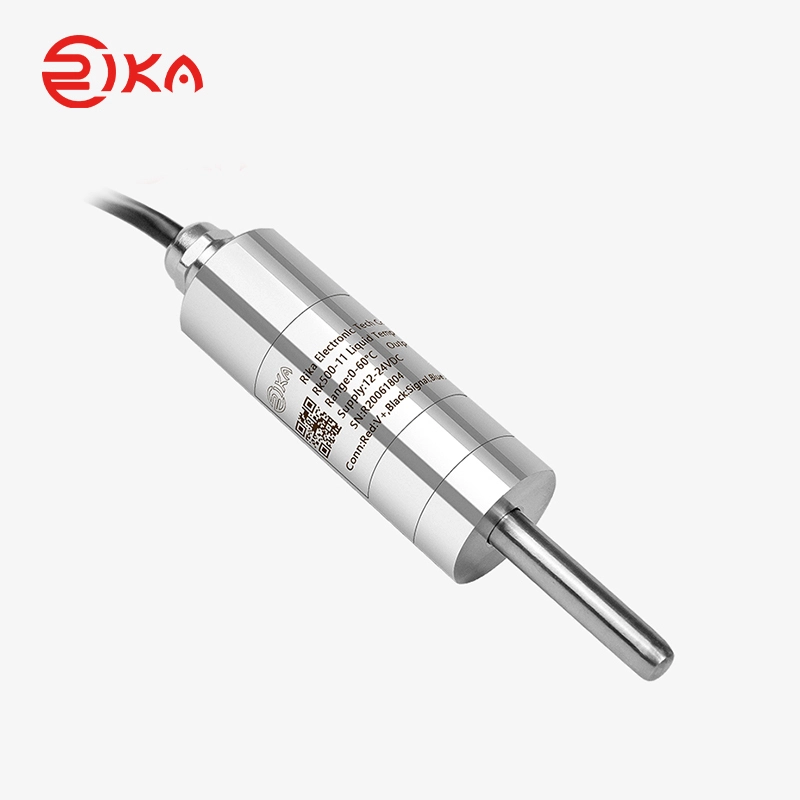

    RK500-11 Liquid Temperature Sensor is used to measure the temperature of the liquid medium, applied to the automatic meteorological station, pond or reservoir water temperature detection and other fields.Sensor with precision thermal resistance as a sensing component, built-in signal sampling and amplification, zero drift and temperature compensation function, has the characteristics of high measuring precision and good stability.

    RK500-11 Liquid Temperature Sensor 8
    RK500-11 Liquid Temperature Sensor 9
    Fast response.
    RK500-11 Liquid Temperature Sensor 10
    Excellent stability.
    RK500-11 Liquid Temperature Sensor 11
    Widely used.
    RK500-11 Liquid Temperature Sensor 12
    Simple operation.
    RK500-11 Liquid Temperature Sensor 13
    High precision.
    RK500-11 Liquid Temperature Sensor 14
    High sensitivity.

    SPECIFICATIONS

    ltem

    Technical Specification

    Range

    -40-+80℃

    Supply

    12-24VDC

    Accuracy

    ±0.5℃

    Element

    PT100 class A

    Response Time

    <1s

    Output Signal

    4-20mA,0-5V,RS485

    Operating Temperature

    -40-+80℃

    Ingress Protection

    IP68

    Storage

    10-60℃ @20%-90%RH

    Probe weight(unpacked)

    145g

    Housing material

    304SS(typ.),316L(seawater)

    PRODUCT APPLICATION

    RK500-11 Liquid Temperature Sensor 15
    Agricultural Irrigation
    RK500-11 Liquid Temperature Sensor 16
    Chemical
    RK500-11 Liquid Temperature Sensor 17
    Biodegradation
    RK500-11 Liquid Temperature Sensor 18
    Reservoir
    RK500-11 Liquid Temperature Sensor 19
    Urban Sewage
    RK500-11 Liquid Temperature Sensor 20
    River
    RK500-11 Liquid Temperature Sensor 21
    Water Treatment
    RK500-11 Liquid Temperature Sensor 22
    Well
