Rika top rated soil sensor industry for detecting soil conditions

Rika top rated soil sensor industry for detecting soil conditions

Model:
RK510-01
MOQ:
1PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika top rated soil sensor industry for detecting soil conditions

PRODUCT DESCRIPTION

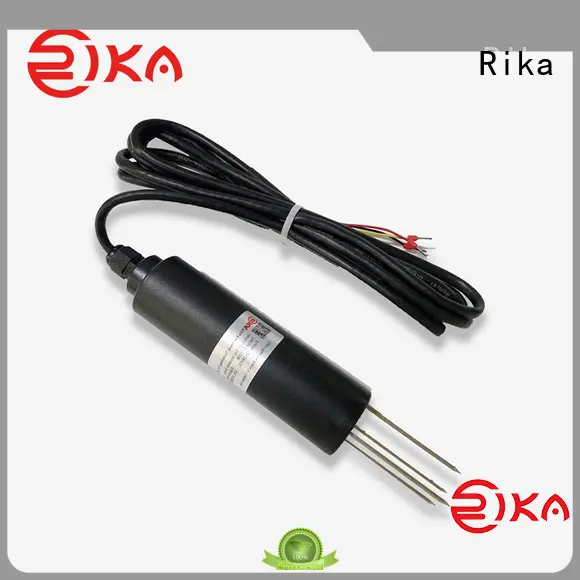

RK510-01 is a high accuracy, high sensitivity of soil moisture measuring instrument.The product on the principle of electromagnetic pulse (FDR:Frequency Domain Reflectometry) to measure the dielectric constant of the soil, stainless steel probe is inserted into the soil surface or soil profile to quickly online measurement of soil volumetric moisture content, the method is the most popular method of soil moisture measurement.It can be used permanently embedded in the soil.Soil moisture sensor can be widely applied to the soil moisture monitoring, water-saving irrigation, greenhouse control, fine agriculture, hydrology and meteorology, and other fields, road monitoring.


Rika top rated soil sensor industry for detecting soil conditions-1

SPECIFICATIONS

Item

Technical Specification

Range

0-100%,0-50%,0-30%,

Accuracy

±2%(0-50%)

Output Signal

4-20mA ,0-5V,0-2V,RS485 optional

Response Time

<1s

Supply

5VDC, 12-24VDC

Effective measurement area

With the center of the probe diameter is 70mm, high 70mm cylinder

Housing

ABS

Dimensions

Ø50*208mm(probe:Ø4*78mm)

Operating Temperature

-30℃-+70℃

Ingress Protection

IP67

Storage

10-60℃@20%-90%RH

Probe material

316L  stainless steel


DIMENSION

PRODUCT DETAILS

Rika top rated soil sensor industry for detecting soil conditions-9

Rika top rated soil sensor industry for detecting soil conditions-10Product Material

Rika top rated soil sensor industry for detecting soil conditions-11

Rika top rated soil sensor industry for detecting soil conditions-12 Product working principle

Rika top rated soil sensor industry for detecting soil conditions-13

Rika top rated soil sensor industry for detecting soil conditions-14Product function

PRODUCT APPLICATION
