Rika ultrasonic wind sensor industry for meteorology field

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK100-02

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

PRODUCT DESCRIPTION

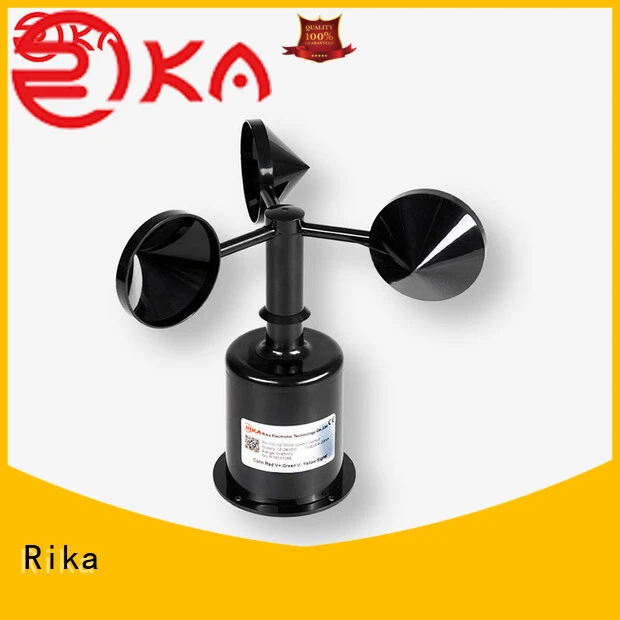

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

Rika ultrasonic wind sensor industry for meteorology field 2

Low starting threshold.

Overall carbon fiber material.

Strong corrosion resistant ability.

Light structure.

Various output signals optional.

Easy Installation.

SPECIFICATIONS

Rika RK100-02 wind speed sensor features

Output	Pulses	4-20mA	0-5V	RS485
Supply voltage	5V, 12V-24V	5V, 12V-24V	5V, 12V-24V	5V, 12V-24V
Load capacity	>1kΩ	<500Ω(typ 250Ω)	>1kΩ
Range	0-45m/s	0-45m/s	0-45m/s	0-45m/s
Accuracy	±(0.3+0.03V)m/s; (V is the current wind speed)
Starting threshold	<0.5m/s
Limit wind speed	50m/s
Ingress protection	IP65
Operating temperature	-40℃ ~ +50℃
Cable grade	Nominal voltage: 300V, Temperature grade: 80℃
Weight(unpacked)	170g
Dimension	Cup rotor: 179mm, Height: 160mm
Main material	Carbon fiber
Storage condition	10℃-50℃@20%-90%RH

DIMENSION & MOUNTING

Rika RK100-02 3-cup anemometer size

Flange mounted:

fix four screws on the bracket and keep the product horizontal.

Connector dimension:

PRODUCT FUNCTION

Rika ultrasonic wind sensor industry for meteorology field 12

Rika ultrasonic wind sensor industry for meteorology field 13

Rika ultrasonic wind sensor industry for meteorology field 14

PRODUCT APPLICATION

Agricultural Meteoroiogical Station

Farming Weather Stations

Greenhouse Weather Station

Metereological Monitoring For Expressway

Metereological Monitoring For High-altitude Facility

Metereological Monitoring For Seaport

Weather Monitoring For Power Generating

Wind Speed Sensor & Wind Direction Sensor

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
