Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika water monitoring sensors factory for temperature monitoring

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK 500-06

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Product Comparison

Under the guidance of market, Rika Sensors constantly strives for innovation. environmental sensor has reliable quality, stable performance, good design, and great practicality.Compared with products in the same category, environmental sensor's core competencies are mainly reflected in the following aspects.

PRODUCT DESCRIPTION

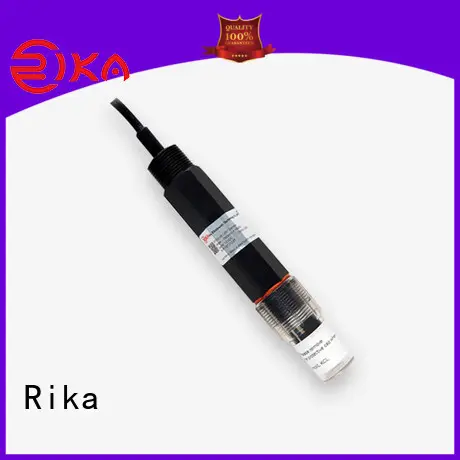

RK500-06 ORP sensor is simple and cost effective solution for a wide variety of waste water and process applications. This all-in-one sensor provides simultaneous measurement of ORP and temperature. The rugged Ryton body is designed for easy installation into on-line via the 3/4 inch tapered threaded connections provided on both ends of the sensor. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable Ryton body, large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning extending the life time.

Rika water monitoring sensors factory for temperature monitoring 4

SPECIFICATIONS

Item	Technical Specification
	ORP	Temperature(only for RS485)
Measurement Principle	Electrochemical(platinum ring)	Thermal resistance
Range	-1500mV-+1500mV	0-80℃
Resolution	0.1mV	0.1℃
Accuracy	±0.5mV	±0.5℃
Supply	7-30VDC
Response time	5s
Output	4-20mA & RS485 at the same time
Operating Environment	-10-+80℃(<0.6MPa)
Stability	≤1%/year
Maintenance	Every 1 months to clean the electrode, every 6 months calibrated
Power consumption	<0.4W
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Cable length	5m default, customizable

DIMENSION

Type A

Universal type ABS housing, Up and down are NPT3/4 threads

Type C

Standard glass type Length=120mm

Type B

Highly corrosion resistant PPS housing, Up and down are NPT3/4 threads

Unit:mm

ELECTRODE MAINTENANCE & INSTALLATION AND FIXED

PH electrode is not used at ordinary times and can be soaked in 3mol/l KCL solution or saturated KCL solution. It is strictly prohibited to immerse the electrode in distilled water and deionize the water or tap water with minimal plasma content.If the PH electrode is contaminated with inorganic substances, it can be cleaned with 0.1mol/l Hcl or NaOH solution for a few minutes and then washed with distilled water. If the PH electrode is contaminated with organic substances, it can be cleaned with alcohol or acetone and then cleaned with distilled water.(note: the protective cap before the electrode should be removed when using);

Clean the electrode with tap water every 3 months or 6 months according to the working environment.

Mounting bracket(length=1m) is optional

Rika water monitoring sensors factory for temperature monitoring 15

Rika water monitoring sensors factory for temperature monitoring 16

Rika water monitoring sensors factory for temperature monitoring 17

Rika water monitoring sensors factory for temperature monitoring 18

PRODUCT DETAILS

Rika water monitoring sensors factory for temperature monitoring 19

Rika water monitoring sensors factory for temperature monitoring 20 Product Principle & Material

Rika water monitoring sensors factory for temperature monitoring 21

Rika water monitoring sensors factory for temperature monitoring 22 Product Features

PRODUCT APPLICATION

Agricultural Irrigation

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
