Rika weather sensor factory for soil temperature measurement

Rika weather sensor factory for soil temperature measurement

Model:
RK900-10
MOQ:
1 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika weather sensor factory for soil temperature measurement
Application Scope
The environmental sensor produced by Rika Sensors is of high quality and is widely used in the Manufacturing Environmental Protection Waste Treatment Environmental Products industry.According to different needs of customers, Rika Sensors is capable of providing reasonable, comprehensive and optimal solutions for customers.
  • Rika weather sensor factory for soil temperature measurement-Rika Sensors-img

PRODUCT DESCRIPTION

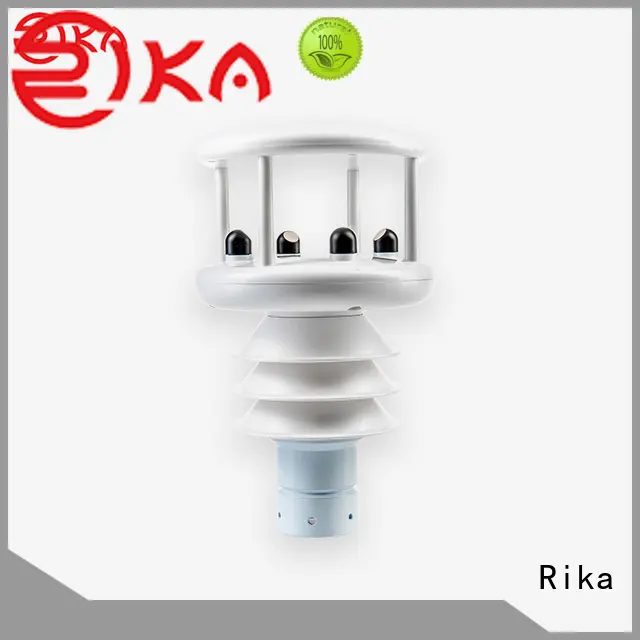

RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity,air pressure,wind speed, wind direction, solar radiation,Illuminance/UV, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield. Wind speed and direction of ultrasonic rinciple. 24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass can be mounted to the system to give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.

Rika weather sensor factory for soil temperature measurement-1

SPECIFICATIONS

Measure item

Principle

Range

Resolution

Accuracy

Wind speed

Ultrasonic

0-60m/s

0.01m/s

±3%

Wind direction

Ultrasonic

0-360º

±3°

Atmospheric temperature

MEMS

-40-+80℃

0.1℃

±0.3℃

Atmospheric humidity

MEMS

0-100%RH

0.1%RH

±3%

Atmospheric pressure

MEMS

150-1100hPa

0.1hpa

±1hPa

Precipitation(Rain/Hail/Snow)

Radar

0-4mm/min

0.01mm

±0.4mm

Solar radiation

Silicon-cell

0-1750W/m2

1W/m2

±5%

Illuminance

optional

Silicon-cell

0-20klux

1lux

±5%

UV

Silicon-cell

100-200kμW/cm2

1μW/cm2

±10%

Dust concentration(PM2.5,PM1)

Photoelectric scattering

0-2000μg/m3

1μg/m3

±4%


Supply

12-24VDC

Output

RS485,RS232,SDI-12

Communication Protocol

Modbus-rtu(default), NMEA-0183,SDI-12

Data update cycle

1s(default), other optional

Power consumption

<2W, auto-heating power: 6W

Operating temperature

-40-+80℃

EMC

EN61000-6-3, EN61000-3-3, EN61000-3-2, EN61000-6-1

IP Rating

IP66

Main material

ABS+ Aluminum alloy

DIMENSION

PRODUCT DETAILS

Rika weather sensor factory for soil temperature measurement-9

Rika weather sensor factory for soil temperature measurement-10 Multiple parameter optional

Rika weather sensor factory for soil temperature measurement-11

Rika weather sensor factory for soil temperature measurement-12 Suitable for harsh environment

Rika weather sensor factory for soil temperature measurement-13

Rika weather sensor factory for soil temperature measurement-14 Multiple output optional

Rika weather sensor factory for soil temperature measurement-15

Rika weather sensor factory for soil temperature measurement-16 Easy calibration
