Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

Rika wind gauge supplier for industrial applications

Payment:

T/T, L/C or Paypal

OEM/ODM:

Available

MOQ:

2 PCS

Model:

RK120-03

Lead Time:

5-7 days

Certification:

CE-EMC, CE-LVD, RoHS, ISO9001

Inquiry

Product Details

We are confident about the exquisite details of environmental sensor.Rika Sensors has the ability to meet different needs. environmental sensor is available in multiple types and specifications. The quality is reliable and the price is reasonable.

Enterprise Strength

The ability to provide service is one of the standards for judging whether an enterprise is successful or not. It is also related to the satisfaction of consumers or clients for the enterprise. All these are important factors influencing the economic benefit and social impact of the enterprise. Based on the short-term goal to meet customers' needs, we provide diverse and quality services and bring good experience with the comprehensive service system.

PRODUCT DESCRIPTION

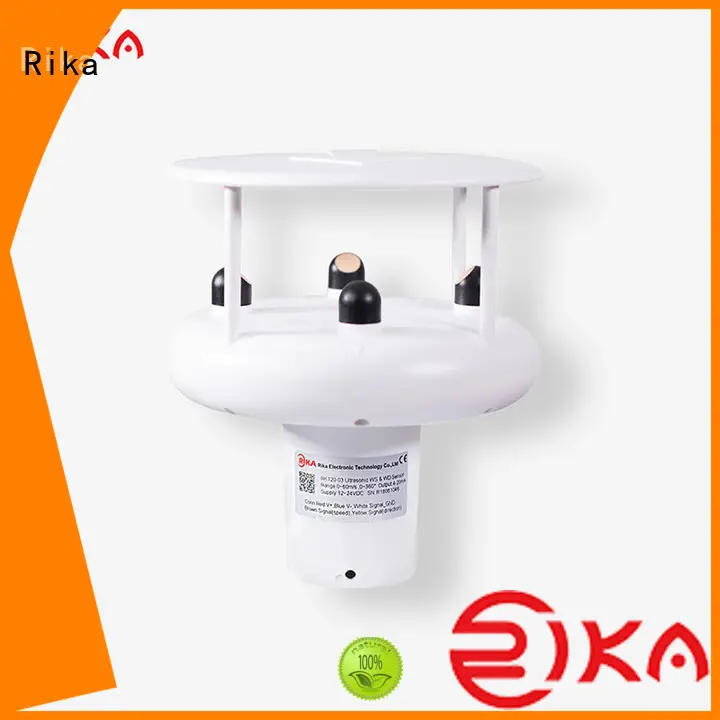

rk120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions,made the accurate and stable elements, low maintenance, an open communications protocol and so on.It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

Rika wind gauge supplier for industrial applications 3

Low starting threshold.

Overall carbon fiber material.

Strong corrosion resistant ability.

Light structure.

Various output signals optional.

Easy Installation.

SPECIFICATIONS

Item	Technical Specification
Power Supply	12-24VDC
Power consumption	<1W(Heating not activated); <3W(Heating activated)
Output Signal	RS232/RS485(Modbus/NMEA-0183),4-20mA(only for wind speed & direction) optional
Operating Temperature	-30℃-+70℃
Ingress Protection	IP66
Heating power	3W max.
Electronic compass	optional
Atmospheric pressure	optional
Dimension	Ф144*148mm
Weight(unpacked)	0.8kg
Main material	ASA

Item	Technical Specification
Item	Wind speed	Wind direction	Atmospheric pressure
Range	0-45m/s,0-60m/s	0-360°	150-1100hPa
Resolution	0.01m/s	1°	0.1hPa
Accuracy	≤10m/s：±0.2m/s ＞10m/s：＜±2% the current value	±3°	±1 hPa
Starting Threshold	0.1m/s	0.1m/s
Extreme Wind Speed	60m/s

DIMENSION & MOUNTING

There is rotary adjustable mounting holes at the bottom of the senor, when mounting the sensor, to ensure the indicator on on the sensor comply with the geographic north.

Rika wind gauge supplier for industrial applications 10

Rika wind gauge supplier for industrial applications 11

PRODUCT DETAILS

Rika wind gauge supplier for industrial applications 12

Rika wind gauge supplier for industrial applications 13 Ultrasonic Pavilion Reflection Principle

Rika wind gauge supplier for industrial applications 14

Rika wind gauge supplier for industrial applications 15 Suitable For Harsh Environment

Rika wind gauge supplier for industrial applications 16

Rika wind gauge supplier for industrial applications 17 Auto-Locate The Installation Position

Rika wind gauge supplier for industrial applications 18

Rika wind gauge supplier for industrial applications 19 Connectors and installation

PRODUCT APPLICATION

Automatic Weather Station

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
