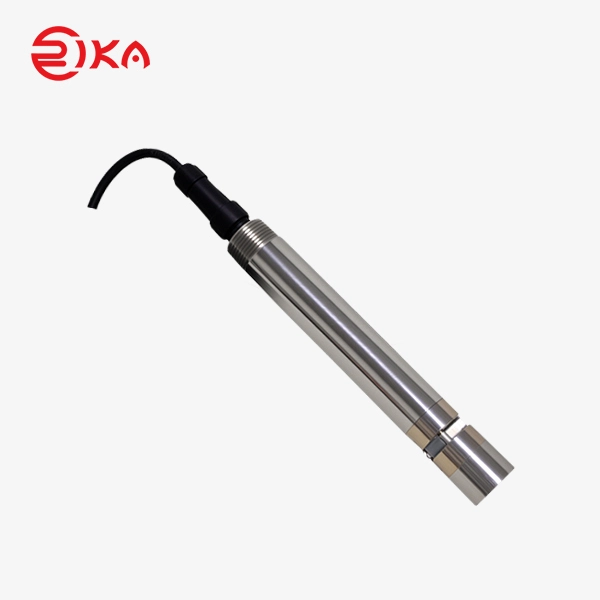

RK500-20 Total Suspended Solid (TSS)Sensor
5.0
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT DESCRIPTION
The RK500-20 Total Suspended Solid (TSS)Sensor is made of optical principle. When a beam of light is injected into the water sample, the suspended substance in the water sample will cause light to scatter. By measuring the intensity of backscattered light and comparing it with the internal calibration value, the suspended substance in the water sample can be calculated, and the final value can be output after linearization.
Fast response.
Excellent stability.
Widely used.
High precision.
High sensitivity.
Simple operation.
SPECIFICATIONS
| Item | Specification |
| Range | 0-100mg/L,0-1000mg/L,0-4000mg/L,0-40000mg/L |
| Accuracy | ±3%FS |
| Resolution | 0.1mg/L(<100mg/L) ，1mg/L(>100 mg/L) |
| Power | 12-24VDC |
| Response time | <2s |
| Clean | Automatic cleaning brush |
| Output | 4-20mA & RS485(Modbus-RTU) |
| Main material | 316L |
| Protection class | IP68 |
| Working conditions | 0-60℃,<0.8MPa |
| Cable length | 5 m(default), customizable |
DIMENSION
Unit：mm
PRODUCT APPLICATION
Agricultural Irrigation
Chemical
Urban Sewage
Biodegradation
River
Reservoir
Well
Water Treatment
