PRODUCT DESCRIPTION

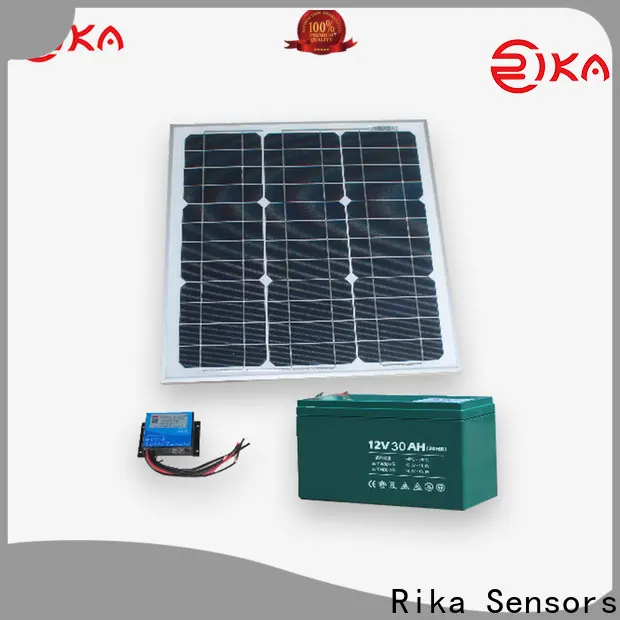

RK95-03 Solar power supply system consists of solar panel, solar controller, battery and the inverter (optional). Solar energy is a clean renewable new energy, has no moving parts, no noise, no pollution, high reliability. It can provide reliable power to sensors or weather stations, mainly used for wireless sensor, automatic test station, automatic weather stations and other power supply.

Controller auto-identify 12/24VDC

Key operation

Save data automatically

Fault code instructions

High charging efficiency

Waterproof grade IP67

SPECIFICATIONS & TYPICAL APPLICATIONS

Specifications:

Item	Technical parameters
Rated current	10A
Rated voltage(self-adaption)	12V	24V
Solar panel voltage	18V	36V
Start voltage	7V	14V
Shutoff voltage	3V	6V
Float charging voltage	13.8V	27.6V
Boost charging voltage	14.8V	29.6V
Equalizing charging voltage	14.4V	28.8V
Over voltage protection	16.5V	33.0V
Over voltage recovery	15.0V	30.0V
Under voltage protection	10.8V	21.6V
Under voltage recovery	12.8V	25.6V
Commercial power start voltage	≤10.8V	≤21.6V
Commercial power shutoff voltage	≥12.8V	≥25.6V
Circuit protection	Overload, short protection
No-load current	≤12mA@12V
Ingress Protection	IP67
Working temperature	-40℃～+70℃
Dimension	81.062.020.0mm

Controller cannot be directly connected to the AC110V/AC220V,the AC must be converted to DC(12V/24V),then connect to the controller.

Typical applications:

Application scope	Single wireless(WIFI,GPRS,Lora, etc.) sensor	RK160-02,RK200-05 or RK400-03	RK900-01
Solar panel	5Wp@18V	10Wp@18V	30Wp@18V
Solar panel	24023017mm	29529520mm	52042025mm
Controller	10A@12V/24V	10A@12V/24V	10A@12V/24V
Controller	816220mm	816220mm	816220mm
Lead-acid battery	7AH@12V	12AH@12V	20AH@12V
Lead-acid battery	1516594mm	1519895mm	18176165mm
Protection box	Customized	Customized	Customized
Cable	RVV2*0.5	RVV2*0.75	RVV2*0.75

Note:

1. Suggest user to ready battery, because the battery is not convenient to transport;

2. The size of the protective box according to the project need to customize;

3. Cable length can be customized.

CONTROLLER DIMENSION & CONNECTION & WORK MODE

The controller has 4 work modes:

1. Light & time control: Mode=1-15: When there is no sunlight start the load, time control shutoff(1-15 hours);

2. Light control Mode=16: When there is no sunlight start the load,when the light appear, shut down load;

3. Normally open Mode=17: Keep the output state 24 hours a day;

4. Manual mode Mode=18:Manual mode.

5. Press the button for 5 s, digital tube start flashing, product into regulating mode, loosen the button, each time you press the button, the number will increase, and the set up, about 5 s digital tube stop flashing, exit mode Settings.
