top rated capacitance probe level measurement solution provider for detecting liquid level 1
top rated capacitance probe level measurement solution provider for detecting liquid level 1

top rated capacitance probe level measurement solution provider for detecting liquid level

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RKL-01
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry

Company Advantages
1. In the manufacturing of Rika Sensors , processes include: foot type collection, CAD design, material cutting, molding, heating, pressing, and product trimming. This product has been certified under CE and RoHS
2. The product has high customer satisfaction and shows a wider market potential. It has sturdy construction to resist the birds' attack
3. Our quality management system ensures that the product meets with the international quality standards. This product comes in a wide range of models to suit every application

Company Features
1. Hunan Rika Electronic Tech Co.,Ltd takes a dominant lead in the industry. Now, many of the are sold to people from various countries. We have a professional product development team. They have much expertise in improving product performance. They effectively coordinate and implement our production with their innovative ideas.
2.  We have a responsible QC team. From raw materials to finished goods, they conduct rigorous inspections and quality controls, eliminating defects and non-compliance during different stages of the production process.
3.  Our factory strength lies in a variety of flexible production facilities. They are well equipped with the latest technologies and comply with scientific management standards, which makes them meet a wide range of needs for manufacturing requirements. Rika Sensors is always famous for its exquisite service. Ask!


PRODUCT DESCRIPTION

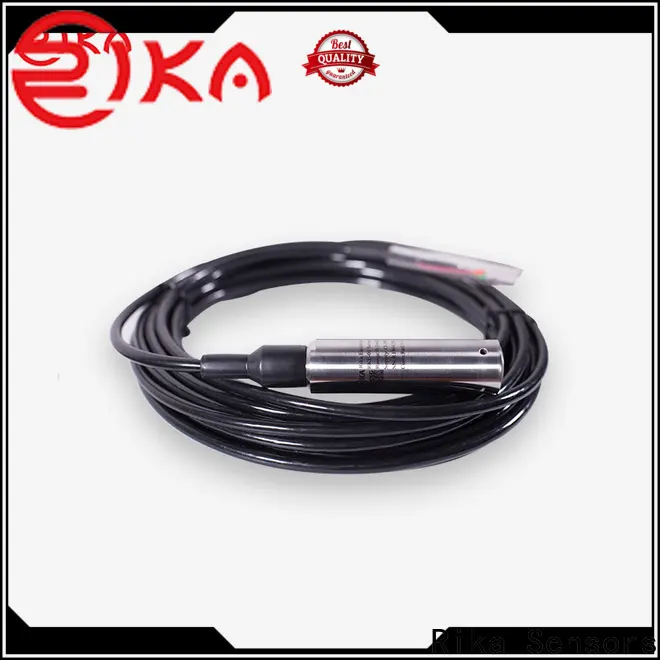

RKL-01 Submersible Liquid Level Transmitter  is with stainless steel isolation diaphragm diffusion silicon pressure core body, the pressure core body adopts the process of laser trimming resistor for a wide temperature range of zero and sensitivity temperature compensation. Special cable for air-venting conduit and waterproof technology ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

top rated capacitance probe level measurement solution provider for detecting liquid level 2

SPECIFICATIONS

Item

Technical specifications

Range

0 ~ 0.5m…200mH2O or 0 ~ 5KPa…2MPa

Output

4-20mA,0-5V,0-10V,RS485

Supply Voltage

10-30VDC,24V typ.

Over Pressure

2×FS

Measuring Medium

The liquid(not sticky ) compatible with 316 stainless steel

Total Accuracy

0.1%FS,0.3%FS(0.25%FS),0.5%FS

Long-term Stability

0.1%FS/year typ.,0.2%FS/year max.

Ingress Protection

IP68

Operating Temperature

-40℃~ +80℃

Compensating Temperature

-10℃~ 70℃

Temperature Drifting

0.03%FS/℃ typ.,0.05%FS/℃

Cycle Life

1*10^8 @25℃

Main Material

Sensor:316L,housing:304SS(316L is optional)

Cable

Outer material:PUR,Atmospheric pressure compensation cable,
     Polymer waterproof plug at cable end

Power Consumption

Current output:(U*0.02)W, Voltage output:(U*0.008)W, Digital output:(U*0.015)W

Load Capacity

Current output:≤(U-7)/0.02Ω, Voltage output:≥100kΩ

Weight(probe unpacked)

Approx. 230g

Storage Condition

10℃-50℃@20%-90%RH

DIMENSION & FIXED BRACKET(OPTIONAL)

MOUNTING

As shown in picture 1,when the sensor is installed in static water such as in poos,water towers,probe is immersed into the bottom and should be as far as possible away from the pump or valves.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.
As shown in picture 2,when the sensor is installed in dynamic water such as dams or rivers,probe should be inserted into a steel pipe(inner dia is around 45mm),burrowing several holes at different height on the pipe side wall which is opposite to the water flow direction.The terminal box should keep above water surface and prevent water penetrating into cables.Please make sure the airway not be blocked.

top rated capacitance probe level measurement solution provider for detecting liquid level 11
top rated capacitance probe level measurement solution provider for detecting liquid level 12

PRODUCT DETAILS

top rated capacitance probe level measurement solution provider for detecting liquid level 13

top rated capacitance probe level measurement solution provider for detecting liquid level 14Product inner part

top rated capacitance probe level measurement solution provider for detecting liquid level 15

top rated capacitance probe level measurement solution provider for detecting liquid level 16 Product accuracy and material

top rated capacitance probe level measurement solution provider for detecting liquid level 17

top rated capacitance probe level measurement solution provider for detecting liquid level 18PUR cable

top rated capacitance probe level measurement solution provider for detecting liquid level 19

top rated capacitance probe level measurement solution provider for detecting liquid level 20IP68 waterproof design

PRODUCT APPLICATION
