    top rated non contact water level sensor industry for detecting liquid level

    top rated non contact water level sensor industry for detecting liquid level
    • top rated non contact water level sensor industry for detecting liquid level

    top rated non contact water level sensor industry for detecting liquid level

    Blended with exquisite craftsmanship, non contact water level sensor is featured with non contact water level sensor. It has an alarm report function when finishing the test work
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    PRODUCT DESCRIPTION

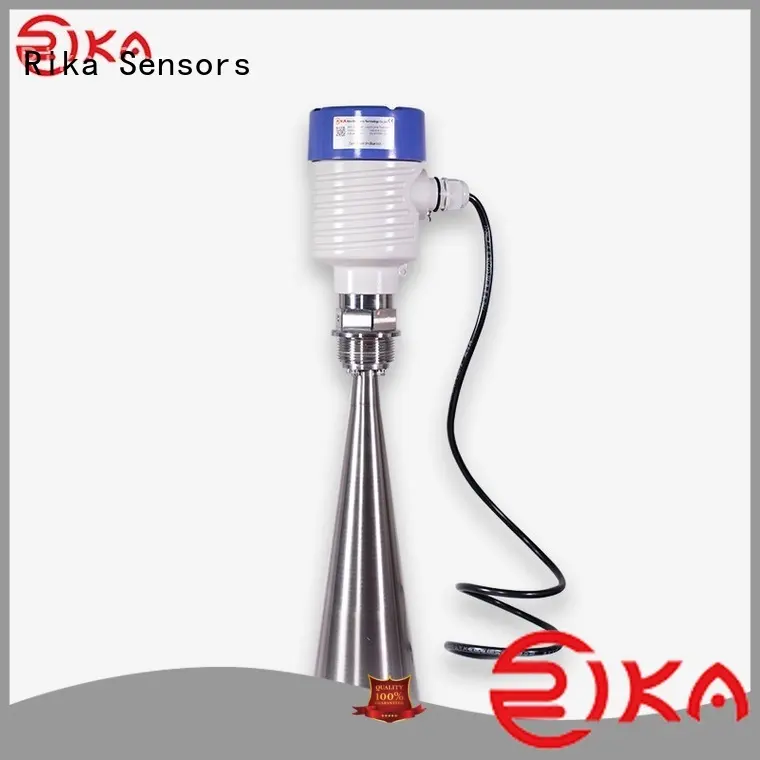

    RKL-02 Radar Liquid Level Transmitter antenna emitter narrow microwave pulse, the pulse in the space at the speed of light transmission, met on the surface of measured medium, some of its energy is reflected back, by the same antenna.Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium.

    top rated non contact water level sensor industry for detecting liquid level-1
    top rated non contact water level sensor industry for detecting liquid level-2
    Excellent stability
    top rated non contact water level sensor industry for detecting liquid level-3
    Fast response
    top rated non contact water level sensor industry for detecting liquid level-4
    Wide temperature range compensation
    top rated non contact water level sensor industry for detecting liquid level-5
    High accuracy
    top rated non contact water level sensor industry for detecting liquid level-6
    Anti-corrosion material optional
    top rated non contact water level sensor industry for detecting liquid level-7
    Strong resistance to interference

    SPECIFICATIONS

    Item

    Technical specifications

    Range

    10m,30m,50m,70m

    Output

    4-20mA,RS485(MODBUS-RTU)

    Supply Voltage

    12VDC,24VDC,220VAC

    Process connection

    G1_1/2,support flange

    Working frequency

    Range ＜30m：6.8GHz ， Range ＞30m＜70m：26GHz

    Accuracy

    		128*64LCD display resolution:1mm

    Relay alarm

    		250VAC/30VDC@5A   Optional

    Ingress Protection

    IP67

    Medium temperature

    -40℃~ +150℃

    Medium pressure

    -100～100kPa

    Operating Temperature

    -40℃~ +85℃

    Housing material

    Aluminum alloy

    Antenna material

    304ss

    Shock

    10m/s²@10～150Hz

    Storage Condition

    10℃-50℃@20%-90%RH


    MOUNTING

    Radar antenna launch microwave has a certain Angle, from the edge of the antenna to the surface between the measured medium, and launch a microwave beam radiation areas shall not be an obstacle.


    top rated non contact water level sensor industry for detecting liquid level-9

    In order to ensure that products meet the requirements of IP67 rating,please make sure:

       The sealing head intact;

       The cable is not damaged;

       Ensure that the cable used in line with the requirements of electrical connection in the specification;

       Before entering the electrical interface, the cable bending down, to ensure that water will not flow into the shell, as shown in;

       Please tighten the cable seal head, see;

       Please return the unused electrical interfaces to blind plugging plugging tight, see.


    DIMENSION

    top rated non contact water level sensor industry for detecting liquid level-10
    top rated non contact water level sensor industry for detecting liquid level-11

    PRODUCT DETAILS

    PRODUCT APPLICATION

    top rated non contact water level sensor industry for detecting liquid level-15
    Biodegradation
    top rated non contact water level sensor industry for detecting liquid level-16
    Agricultural Irrigation
    top rated non contact water level sensor industry for detecting liquid level-17
    Chemical
    top rated non contact water level sensor industry for detecting liquid level-18
    Reservoir
    top rated non contact water level sensor industry for detecting liquid level-19
    River
    top rated non contact water level sensor industry for detecting liquid level-20
    Well
    top rated non contact water level sensor industry for detecting liquid level-21
    Water Treatment
    top rated non contact water level sensor industry for detecting liquid level-22
    Urban Sewage





    non contact water level sensor is designed to bring great convenience for customers. Adopting high-quality imported stainless steel, it has a long service life
    non contact water level sensor from Hunan Rika Electronic Tech Co.,Ltd is of superior quality. It is manufactured to meet international safety requirements
    It is non contact water level sensor that contributes to the uniqueness of our non contact water level sensor. The "one-button" design provides easy use for users
    Hunan Rika Electronic Tech Co.,Ltd provides different designs of non contact water level sensor for your choice. Its surface is not to get rusty
    Through the extinguished design of our professional engineers, our non contact water level sensor in its non contact water level sensor rank top. It is manufactured to meet international safety requirements
    Rika Sensors combines non contact water level sensor with non contact water level sensor together to ensure the durability of non contact water level sensor. Its key components are made of stainless steel which is durable in use
