    top rated rain measurement equipment solution provider for measuring rainfall amount

    top rated rain measurement equipment solution provider for measuring rainfall amount
    • top rated rain measurement equipment solution provider for measuring rainfall amount

    top rated rain measurement equipment solution provider for measuring rainfall amount

    Blended with exquisite craftsmanship, rain measurement equipment is featured with rain measurement equipment. It conforms to the standards of EN, ASTM, DIN, BS, JIS, etc
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    PRODUCT DESCRIPTION

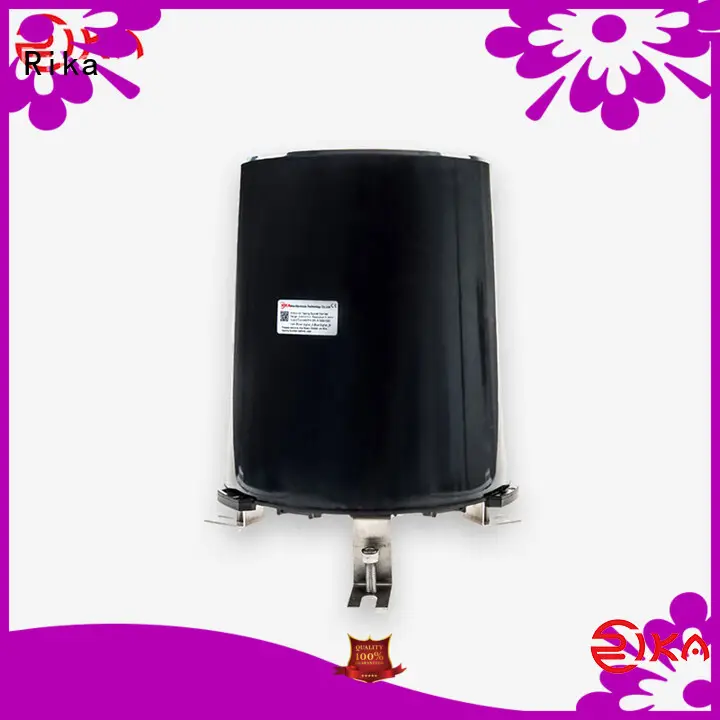

    RK400-04 Economical Tipping Bucket Rainfall Sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation  into a pulse signal output. Designed with insect-proof nets, free blocking nozzle and built-in leveller. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure measure precipitation, precipitation intensity, precipitation time.

    top rated rain measurement equipment solution provider for measuring rainfall amount-1
    top rated rain measurement equipment solution provider for measuring rainfall amount-2
    Compact size for easy use.
    top rated rain measurement equipment solution provider for measuring rainfall amount-3
    Auto-heating function.
    top rated rain measurement equipment solution provider for measuring rainfall amount-4
    High accuracy.
    top rated rain measurement equipment solution provider for measuring rainfall amount-5
    High accuracy.
    top rated rain measurement equipment solution provider for measuring rainfall amount-6
    Stainless steel Construction.
    top rated rain measurement equipment solution provider for measuring rainfall amount-7
    Outlet with insect-proof.

    SPECIFICATIONS

    Item

    Specification

    Collector

    Diameter :φ200mm, height: 271mm

    Measured rainfall intensity

    Max: 4mm/min

    Allow rainfall intensity

    Max: 8mm/min

    Resolution

    0.2mm

    Accuracy(2mm/min)

    ±4%

    Maximum load voltage

    30VDC(pulse output)

    Maximum load current

    20mA

    Output

    Pulses(@10kΩ&0.01uF),RS485(12-24VDC supply)

    Operating temperature

    0-60℃@0%-100%RH

    Weight(unpacked)

    Rainfall collector & tipping bucket: ABS,
         Supporting leg:304SS

    Weight(unpacked)

    2kg

    WORKING PROCESS DIMENSION & MOUNTING

    DIMENSION & MOUNTING

    Adjust the balance foot screws to ensure that it is in a horizontal position.Using three fastening screws to fix this three support legs at the platform to keep the entire apparatus at an optimum level , which ensure the accuracy of rainfall data.

    top rated rain measurement equipment solution provider for measuring rainfall amount-8

    WORKING PROCESS

    Rainfall is captured in the 200mm diameter collector funnel and is directed through a delivery pipe to fill a divided ABS injection molded tipping bucket device.The bucket is pivoted through its center and has a preset calibration to tip for 0.2 mm of rainfall. When the bucket is “full”, it pivots and empties - this action magnetically closes and opens a reed switch, sending a pulse signal to the data logger or electronic counter. Through this tipping “seesaw” action, the other side of the bucket is aligned to receive the flow from the delivery pipe. This recording and tipping cycle continues with rainfall.

    PRODUCT DETAILS

    top rated rain measurement equipment solution provider for measuring rainfall amount-9

    top rated rain measurement equipment solution provider for measuring rainfall amount-10Product Principle

    top rated rain measurement equipment solution provider for measuring rainfall amount-11

    top rated rain measurement equipment solution provider for measuring rainfall amount-12 Material

    top rated rain measurement equipment solution provider for measuring rainfall amount-13

    top rated rain measurement equipment solution provider for measuring rainfall amount-14Leaf Filter

    top rated rain measurement equipment solution provider for measuring rainfall amount-15

    top rated rain measurement equipment solution provider for measuring rainfall amount-16Horizontal Adjustment

    PRODUCT APPLICATION

    top rated rain measurement equipment solution provider for measuring rainfall amount-17
    Forestry
    top rated rain measurement equipment solution provider for measuring rainfall amount-18
    Agricultural
    top rated rain measurement equipment solution provider for measuring rainfall amount-19
    Weather Station
    top rated rain measurement equipment solution provider for measuring rainfall amount-20
    Rainfall Station





    rain measurement equipment is designed to bring great convenience for customers. Optional accessories are available to customers' needs
    rain measurement equipment from Hunan Rika Electronic Tech Co.,Ltd is of superior quality. The "one-button" design provides easy use for users
    It is rain measurement equipment that contributes to the uniqueness of our rain measurement equipment. Adopting high-quality imported stainless steel, it has a long service life
    Hunan Rika Electronic Tech Co.,Ltd provides different designs of rain measurement equipment for your choice. Optional accessories are available to customers' needs
    Through the extinguished design of our professional engineers, our rain measurement equipment in its rain measurement equipment rank top. It is popular for its good heat-insulated performance
    Rika Sensors combines rain measurement equipment with rain measurement equipment together to ensure the durability of rain measurement equipment. The product is highly resistant to oxidation
