PRODUCT DESCRIPTION

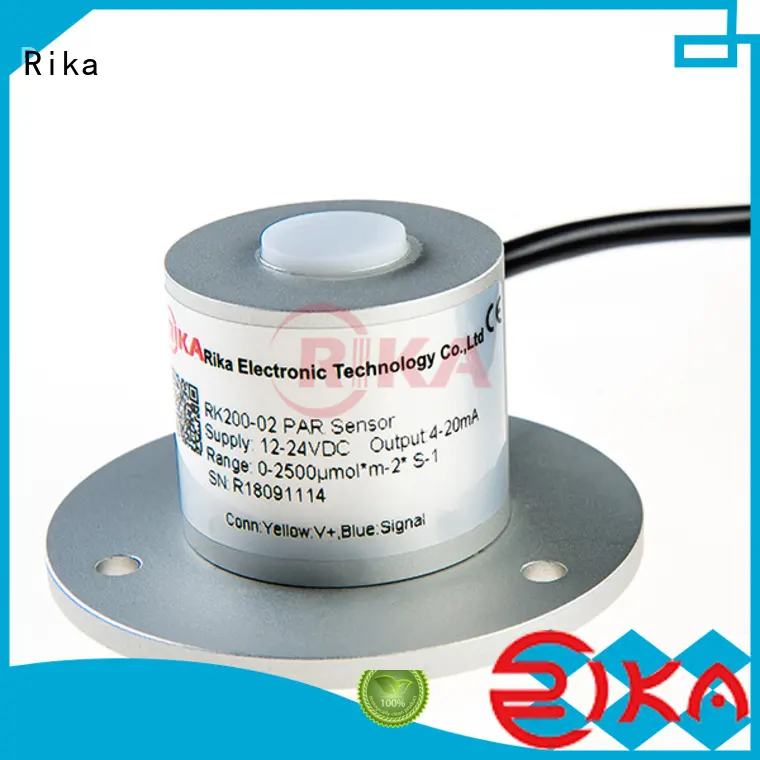

The RK200-02 PAR Sensor is mainly used for measuring solar radiation within 400~700nm wavelength. It is easy installation and can work continuously in all weathers. When there is sunlight, voltage output proportional to incident light intensity will be generated by the silicon-photo detector in the sensor. Its sensitivity is proportional to the cosine of incident light direct angle. Each product is with one sensitivity coefficient respectively. It can directly output radiation value in unit of μ*mol/m2*s.

top rated solar pyranometer factory for shortwave radiation measurement-1

top rated solar pyranometer factory for shortwave radiation measurement-2

Conform to the WMO standard.

top rated solar pyranometer factory for shortwave radiation measurement-3

Suitable for harsh environment.

top rated solar pyranometer factory for shortwave radiation measurement-4

Easy installation.

top rated solar pyranometer factory for shortwave radiation measurement-5

Visual desiccant Window.

top rated solar pyranometer factory for shortwave radiation measurement-6

Low power Consumption.

top rated solar pyranometer factory for shortwave radiation measurement-7

High sensitivity.

SPECIFICATIONS

Item		Specification
Spectral range	0-2500μmol/m2s	350-1100nm
	0-2000W/m2	400-700nm
Supply		5V,12-24VDC
Accuracy		±5% rdg
Range		0-2500μ*mol/m2,0-2000W/m2
Output		0-2000mV	4-20mA(2-wires)	RS485
Sensitivity	0-2500μmol/m2s	0.8mV/μmolm-2 S-1	6.4μA/μmolm2*s	/
	0-2000W/m2	1mV/W/m2	8uA/W/m2	/
Response time	<1s (99%)
Temperature effect	<0.05%/℃
Cosine correction	<10% (until 80°)
Non-linearity	<±2%
Operating temperature	-40℃-+80℃°
Shell material	Aluminum alloy
Storage Condition	10℃-60℃@20%-90%RH

OUTPUT CHARACTERISTICS

● 0-2000mV

Range:0-2000W PAR values(W)= Voltage output value(μV)/1000

Range:0-2500μ*mol/m2*s PAR values(μ*mol/m2*s)= Voltage output value(μV)/800

● 4-20 mA

Range:0-2000W PAR values(W)=(I(μA)-4000μA)/8 (Where I is output current value,unit:μA )

Range:0-2500μ*mol/m2*s PAR values(μ*mol/m2*s)= (I(μA)-4000μA)/6.4(Where I is output current value,unit:μA )

● RS485

MODBUS-RTU

DIMENSION

top rated solar pyranometer factory for shortwave radiation measurement-8

In order to ensure measurement accuracy, please keep the horizontal installation.

PRODUCT DETAILS

top rated solar pyranometer factory for shortwave radiation measurement-9

top rated solar pyranometer factory for shortwave radiation measurement-10 Product Principle

top rated solar pyranometer factory for shortwave radiation measurement-11

top rated solar pyranometer factory for shortwave radiation measurement-12 Product Range

top rated solar pyranometer factory for shortwave radiation measurement-13

top rated solar pyranometer factory for shortwave radiation measurement-14 Product Output Optional

top rated solar pyranometer factory for shortwave radiation measurement-15

top rated solar pyranometer factory for shortwave radiation measurement-16 Product Installation

PRODUCT APPLICATION

top rated solar pyranometer factory for shortwave radiation measurement-17

Schoolyard Weather Station

top rated solar pyranometer factory for shortwave radiation measurement-24

Solar radiation monitoring station
