Product details of the industrial turbidity sensor
Product Introduction
Rika Sensor industrial turbidity sensor is made of the finest quality materials which has been tested carefully before production. The product is rather durable to use, can hold up over time. The latest technology has been put into production of industrial turbidity sensor.
PRODUCT DESCRIPTION

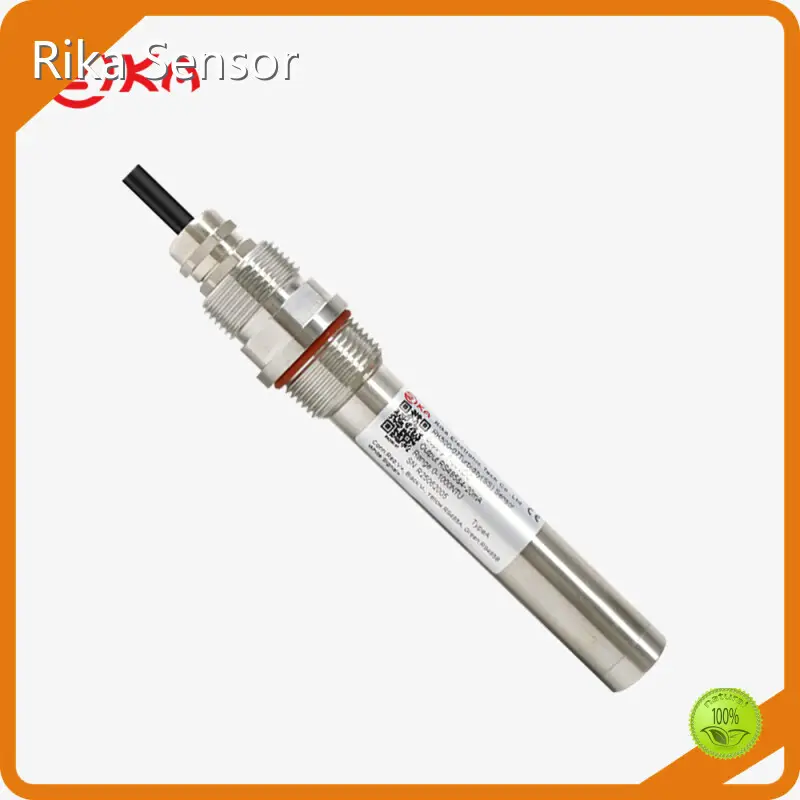

RK500-07 turbidity sensor for water quality is an instrument which uses optical principle to measure the degree of turbidity of water. This water turbidity sensor helps you monitor water quality by detecting suspended particles in various water sources, ensuring cleaner and safer water. Turbidity is caused by suspended particles in water. The suspended particles reflect the incident light. Usually, the scattered light in the direction of 90°is used as the test signal, so the unit tested is called NTU. This method is suitable for testing low to medium range, ranging from 0.01 to 4000FNU. According to EN27027 and ISO7027 standards, infrared light of 860 nm is used as light source, which cannot be disturbed by the chromaticity of samples.
Key Features:
- High Accuracy: Provides precise turbidity readings for accurate water assessment;
- Durable Stainless Steel Body: Built to withstand harsh environments and ensure long-term performance;
- Wide Range of Applications: Perfect for wastewater treatment, environmental monitoring, and aquaculture;
- Easy Integration: Seamlessly connects with other systems;
- Low Maintenance: Designed for easy use and minimal upkeep.
SPECIFICATIONS
Technical Parameter | |
Type | RK500-07-A |
Application | General freshwater environment |
Self-cleaning | / |
Main material | 316L |
Screw thread | Upper: NPT3/4, Lower: NPT3/4 |
Accuracy | ±1%FS |
Resolution | 0.01NTU(≤10NTU) , 0.1NTU(>10NTU) |
Power consumption | <0.2W |
Operating temperature | 0-+60℃ |
Range | 0-10NTU ,0-100NTU,0-1000NTU,0-4000NTU |
Supply | 7-30VDC |
Output | 4-20mA&RS485 at the same time |
Response time | 1S |
Pressure resistance | 0.8Mpa |
Ingress protection | IP68 |
Storage | 10-60℃@20%-90%RH |
Cable length | 5m default |
DIMENSION
Unit:mm
Installation & Usage
- Put directly into the liquid
- Adopt submersible mounting bracket (show in the below figure)
Mounting bracket (length=1m)
If the pipeline is made of reflective material, such as stainless
steel, aligning the connection line of the two small holes with the
direction of the pipeline will significantly improve accuracy
Electrode maintenance:Keep the sensor's optical surface clean,and wipe it gently if necessary.Caution:Avoid strong vibrations to prevent damage to the front transparent glass.Do not scrapeit with hard objects.
