Company Advantages
· From the development phase, we work to enhance the material quality and product structure of Rika Sensor optical turbidity sensor.
· Annual recertification audits verify that its quality standards are maintained.
· Hunan Rika Electronic Tech Co.,Ltd provides excellent customer service while advising the customer on optical turbidity sensor maintenance.
PRODUCT DESCRIPTION

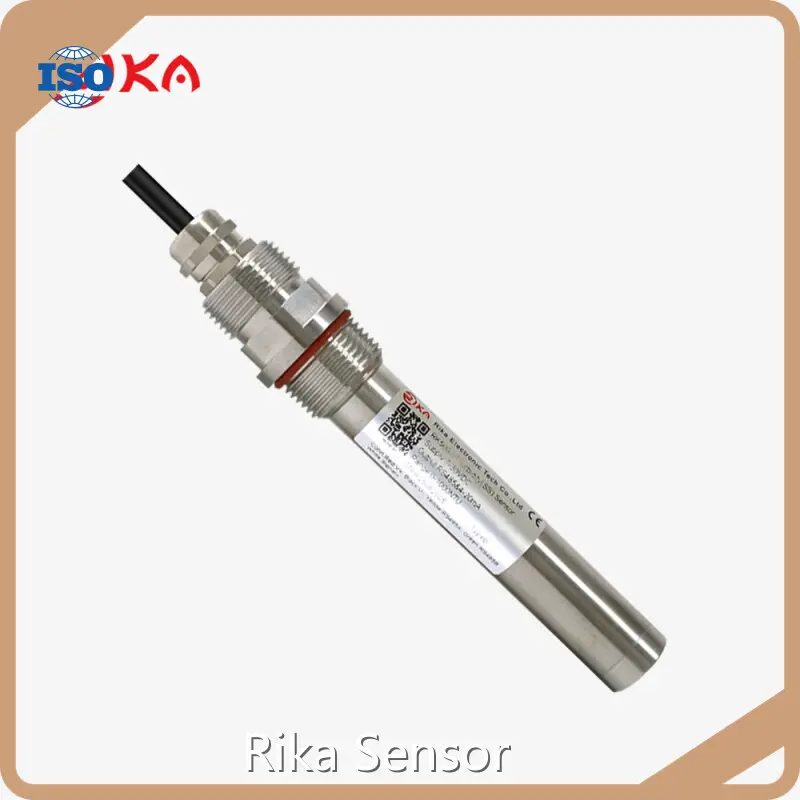

The RK500-7-B Turbidity Sensor represents a cutting-edge solution in water quality monitoring, engineered to deliver exceptional performance in demanding environments such as mariculture, strongly corrosive wastewater systems, and complex industrial scenarios. Combining premium materials, precise engineering, and industry-leading durability, this sensor is designed to meet the rigorous needs of professionals seeking reliability, accuracy, and versatility in turbidity measurement.
Crafted with a titanium alloy main body, the RK500-7-B ensures outstanding corrosion resistance, making it ideal for aggressive chemical environments while maintaining structural integrity in harsh conditions. Its robust design features NPT3/4 threaded connections on both upper and lower ends, facilitating easy installation and integration into existing systems.
Key technical specifications highlight its superior capabilities:
Accuracy: ±1% FS for dependable, repeatable measurements.
Resolution: 0.01 NTU (≤10 NTU) and 0.1 NTU (>10 NTU), delivering fine-grained data even in low-turbidity applications.
Low Power Consumption: <0.2W, optimizing energy efficiency for battery-powered or remote deployments.
Wide Operating Range: Functions reliably across 0–60°C with a measurement range of 0–10 NTU, 0–100 NTU, 0–1,000 NTU, or 0–4,000 NTU, adaptable to diverse water quality monitoring needs.
Dual Outputs: Simultaneous 4–20mA analog and RS485 digital signals, ensuring seamless compatibility with PLCs, data loggers, and control systems.
Enhanced Durability: Features an IP68 ingress protection rating, resisting dust and submersion up to specified depths, along with 0.8 MPa pressure resistance and a storage temperature range of 10–60°C (20–90% RH), ensuring longevity in extreme conditions.
SPECIFICATIONS
Technical Parameter | |
Type | RK500-07-B |
Application | Mariculture, strongly corrosive sewage, complex scenes etc |
Self-cleaning | / |
Main material | titanium alloy |
Screw thread | Upper: NPT3/4, Lower: NPT3/4 |
Accuracy | ±1%FS |
Resolution | 0.01NTU(≤10NTU) , 0.1NTU(>10NTU) |
Power consumption | <0.2W |
Operating temperature | 0-+60℃ |
Range | 0-10NTU ,0-100NTU,0-1000NTU,0-4000NTU |
Supply | 7-30VDC |
Output | 4-20mA&RS485 at the same time |
Response time | 1S |
Pressure resistance | 0.8Mpa |
Ingress protection | IP68 |
Storage | 10-60℃@20%-90%RH |
Cable length | 5m default |
DIMENSION
Unit:mm
Installation & Usage
- Put directly into the liquid
- Adopt submersible mounting bracket (show in the below figure)
Mounting bracket (length=1m)
If the pipeline is made of reflective material, such as stainless
steel, aligning the connection line of the two small holes with the
direction of the pipeline will significantly improve accuracy
Electrode maintenance:Keep the sensor's optical surface clean,and wipe it gently if necessary.Caution:Avoid strong vibrations to prevent damage to the front transparent glass.Do not scrapeit with hard objects.
PRODUCT DETAILS
PRODUCT APPLICATION
CUSTOMER TESTIMONIALS
CERTIFICATE
Company Features
· With reliable quality and competitive price, Hunan Rika Electronic Tech Co.,Ltd are cooperating with many famous companies for its optical turbidity sensor.
· There is a wide range of reliable and high efficient manufacturing facilities in our factory. These facilities have greatly improved production efficiency no matter in machining or packaging.
· Hunan Rika Electronic Tech Co.,Ltd will do our utmost to provide the most satisfying service for our customers. Inquiry!
Product Details
We pursue perfection in every detail of the optical turbidity sensor we produce. And our products represent the excellent quality.
Application of the Product
Rika Sensor's optical turbidity sensor has been widely used in many industries.
Rika Sensor has been engaged in the production of weather sensors,environmental sensor,environmental monitoring for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
Enterprise Advantages
Our company now has a team of first-rate talents who contribute to the research and development and production of our products.
Rika Sensor has established a strict internal control system and a sound service system to provide quality products and efficient services for our customers.
We are determined to provide consumers with the highest quality products. Besides, we strive to build the company into the most competitive enterprise in the country and realize the strategic goal of 'facing the country and going to the world'.
Rika Sensor was founded in After the development of years, we have become a leader in the industry.
To explore domestic and international markets, we establish a cross-regional sales framework, and provide various high quality products. At present, our products are not only sold in major cities in China, but also exported to the Americas, Australia, Europe and other regions.
