Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.
Rika Sensor Ec Sensor Turbidity Sensor Wholesale
Company Advantages
· Rika Sensor ec sensor turbidity sensor is expertly crafted from reliable materials.
· Products under the supervision of professionals, through strict quality inspection, to ensure product quality.
· Quality check is fundamental to the production of ec sensor turbidity sensor.
PRODUCT DESCRIPTION

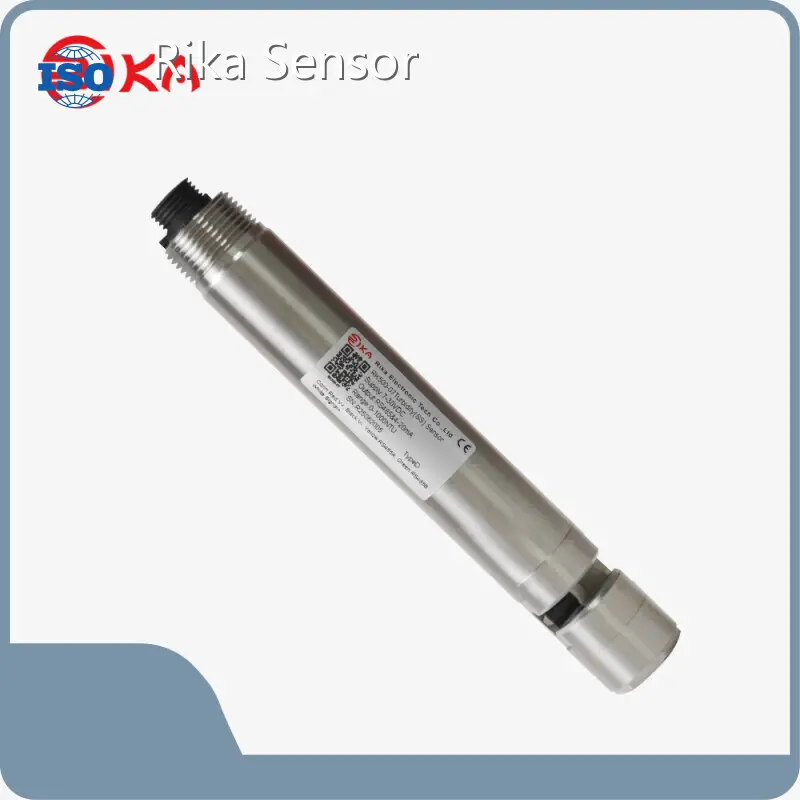

RK500-07 turbidity sensor for water quality is an instrument which uses optical principle to measure the degree of turbidity of water. This water turbidity sensor helps you monitor water quality by detecting suspended particles in various water sources, ensuring cleaner and safer water. Turbidity is caused by suspended particles in water. The suspended particles reflect the incident light. Usually, the scattered light in the direction of 90°is used as the test signal, so the unit tested is called NTU. This method is suitable for testing low to medium range, ranging from 0.01 to 4000FNU. According to EN27027 and ISO7027 standards, infrared light of 860 nm is used as light source, which cannot be disturbed by the chromaticity of samples.
Key Features:
- High Accuracy: Provides precise turbidity readings for accurate water assessment;
- Durable Stainless Steel Body: Built to withstand harsh environments and ensure long-term performance;
- Wide Range of Applications: Perfect for wastewater treatment, environmental monitoring, and aquaculture;
- Easy Integration: Seamlessly connects with other systems;
- Low Maintenance: Designed for easy use and minimal upkeep.
SPECIFICATIONS
Technical Parameter | |
Type | RK500-07-D |
Application | With cleaning brush, maintenance free |
Self-cleaning | Yes |
Main material | 316L |
Screw thread | NPT3/4 |
Accuracy | ±2%FS |
Resolution | 0.1NTU |
Power consumption | Cleaning brush start:<1.5W Cleaning brush stop:<0.2W |
Operating temperature | -5-+60℃ |
Range | 0-10NTU ,0-100NTU,0-1000NTU,0-4000NTU |
Supply | 7-30VDC |
Output | 4-20mA&RS485 at the same time |
Response time | 1S |
Pressure resistance | 0.8Mpa |
Ingress protection | IP68 |
Storage | 10-60℃@20%-90%RH |
Cable length | 5m default |
DIMENSION
Unit:mm
Installation & Usage
- Put directly into the liquid
- Adopt submersible mounting bracket (show in the below figure)
Mounting bracket (length=1m)
If the pipeline is made of reflective material, such as stainless
steel, aligning the connection line of the two small holes with the
direction of the pipeline will significantly improve accuracy
Electrode maintenance:Keep the sensor's optical surface clean,and wipe it gently if necessary.Caution:Avoid strong vibrations to prevent damage to the front transparent glass.Do not scrapeit with hard objects.
PRODUCT DETAILS
PRODUCT APPLICATION
CUSTOMER TESTIMONIALS
CERTIFICATE
Company Features
· Hunan Rika Electronic Tech Co.,Ltd is a globally leading enterprise which primarily manufactures ec sensor turbidity sensor.
· Hunan Rika Electronic Tech Co.,Ltd has a team of professional R&D engineers and quality control experts dedicated to ec sensor turbidity sensor product development. Hunan Rika Electronic Tech Co.,Ltd goes back to its research teams and crafts new products. Hunan Rika Electronic Tech Co.,Ltd has dedicated teams of R&D, engineers and quality control experts on ec sensor turbidity sensor product development.
· In addition to the improvements for ec sensor turbidity sensor, we will continue to improve services. Please contact.
Product Comparison
Compared with other products in the industry, ec sensor turbidity sensor has more obvious advantages which are reflected in the following aspects.
Enterprise Advantages
Rika Sensor has an elite team with high cohesiveness, technical excellence, high quality, high performance and courage, which provides favorable conditions for our development.
provides customers with a full range of services to meet the individual needs of different customers.
Our company adheres to the tenet of 'customer first and honesty-oriented' and the management philosophy of 'quality and excellence'. We make effort to get a lasting development while providing high-quality products, and look forward to work together and create brilliance with new and old customers in industry.
Rika Sensor was founded in Having accumulated for years, we are now a modern enterprise with strong strength, standardized management, and broad sales market.
In addition to being sold to many cities in China, our products are also exported to Southeast Asia, Africa and other foreign countries, and are highly praised by local consumers.
