professional solar radiation shield factory

Professional solar radiation shield factory

Model:
RK95-08
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Comparison
Rika Sensors is certified by various qualifications. We have advanced production technology and great production capability. environmental sensor has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.environmental sensor produced by Rika Sensors stands out among many products in the same category. And the specific advantages are as follows.
  • professional solar radiation shield factory-Rika Sensors-img-1
    professional solar radiation shield factory-weather sensors-environmental sensor-environmental monit-1
Product Details
Rika Sensors pursues perfection in every detail of weather sensors, so as to show quality excellence.weather sensors is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.
  • professional solar radiation shield factory-weather sensors, best weather station, environmental sen-1

PRODUCT DESCRIPTION

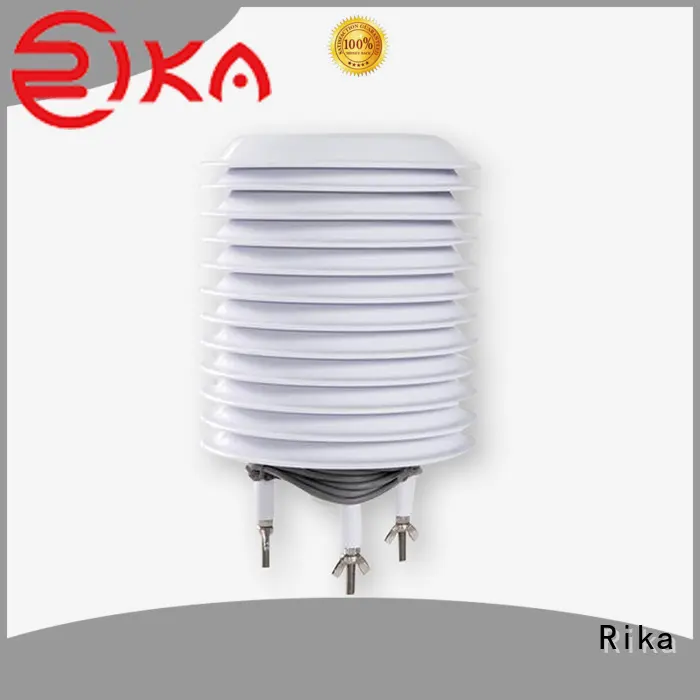

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.The product with breathing fan, make sure the screen inside and outside environment difference is minimal.

professional solar radiation shield factory-1

SPECIFICATIONS

Item

Specifications

Number of plates

7-20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation engineering plastics & Stainless steel screw

Supply of fan

7-13.8VDC(typ.12VDC)

Rated power

1W

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

professional solar radiation shield factory-8

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

7

ø62*50

140

89

approx.63

8

ø62*63

140

101

approx.63

9

ø62*75

140

114

approx.63

10

ø62*88

140

126

approx.63

11

ø62*100

140

139

approx.63

12

ø62*113

140

151

approx.63

13

ø62*125

140

164

approx.63

14

ø62*138

140

176

approx.63

15

ø62*150

140

189

approx.63

16

ø62*163

140

201

approx.63

17

ø62*175

140

214

approx.63

18

ø62*198

140

226

approx.63

19

ø62*200

140

239

approx.63

20

ø62*213

140

251

approx.63

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

professional solar radiation shield factory-9

PRODUCT DETAILS

professional solar radiation shield factory-10

professional solar radiation shield factory-11Material

professional solar radiation shield factory-12

professional solar radiation shield factory-13 Multiple output optional

professional solar radiation shield factory-14

professional solar radiation shield factory-15Product features

PRODUCT APPLICATION



Rika Sensors radiation protective shields undergoes a final scrutinization of various aspects. They involve workmanship, appearance, measurement/fittings, fabrics, seam, and stitching quality.
Technologies impact the designing way of Rika Sensors radiation shield. They are mainly virtual prototyping, CAD drawing, and 3D image technologies which offer flexibility to test new ideas and customize items.
Rika Sensors solar radiation shield is designed with great flexibility. The professional cabinet designers create this product from an ergonomic point of view while combining our customers' requirements to provide a comprehensive design.
Rika Sensors solar radiation shield is manufactured based upon the strict quality standards for furniture. It has been tested for appearance, physical and chemical properties, environmental performance, weather fastness.
Rika Sensors radiation shield will go through comprehensive quality inspection. It will be carefully scrutinized with regard to size (thickness, width, length, etc.), seams, stitches, materials ingredients, and appearance defects.
This product is high in accordance with the first-class quality standards. It is certified under the internal and external standards and therefore it will be widely accepted by the market.
