Rika professional solar radiation shield factory

Rika professional solar radiation shield factory

Model:
RK95-02A
MOQ:
2 PCS
Payment:
T/T, L/C or Paypal
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
OEM/ODM:
Available
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of Rika professional solar radiation shield factory

PRODUCT DESCRIPTION

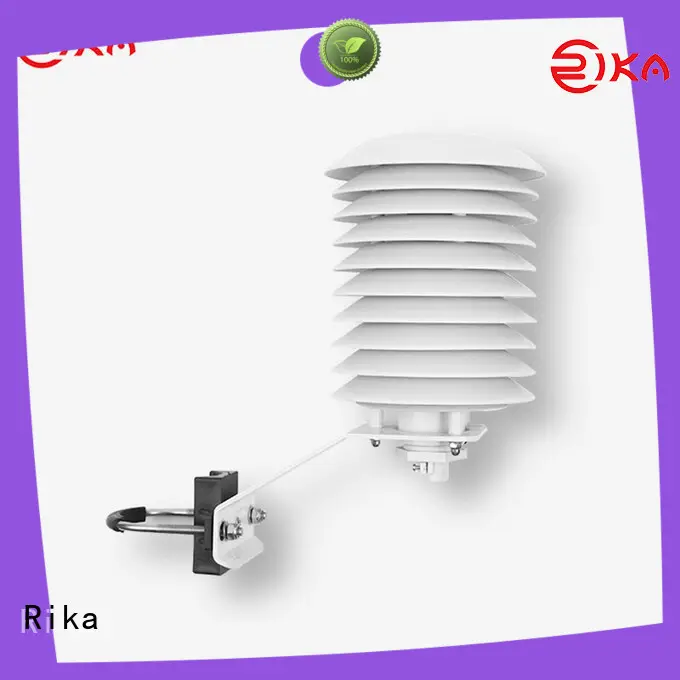

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather condition.

Rika professional solar radiation shield factory-1

SPECIFICATIONS

Item

Specifications

A

B

Number of plates

10

7

Color

Pure white

Dimensions( mm)

Inner diameter

30

22

Outer diameter

130

79

Internal height

135

80

Material

Special engineering plastics against radiation & Stainless steel screw

Install accessories(attached)

Stainless steel bracket

Operating temperature

-40℃-+75℃

DIMENSION & MOUNTING

Rika professional solar radiation shield factory-6
Rika professional solar radiation shield factory-7

PRODUCT DETAILS

Rika professional solar radiation shield factory-8

Rika professional solar radiation shield factory-9Installation Probes

Rika professional solar radiation shield factory-10

Rika professional solar radiation shield factory-11 Suitable For Outdoor Installation

Rika professional solar radiation shield factory-12

Rika professional solar radiation shield factory-13Rain-proof Design

PRODUCT APPLICATION
