 Rika Sensor is a weather sensor manufacturer and environmental monitoring solution provider with 10+ years of industry experience.

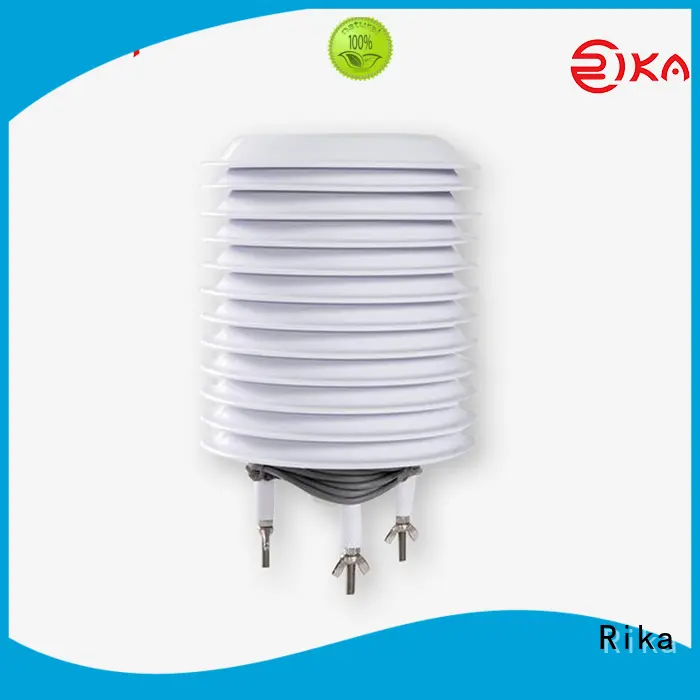

Rika solar radiation shield supplier for temperature measurement 1
Rika solar radiation shield supplier for temperature measurement 1

Rika solar radiation shield supplier for temperature measurement

Payment:
T/T, L/C or Paypal
OEM/ODM:
Available
MOQ:
2 PCS
Model:
RK95-08
Lead Time:
5-7 days
Certification:
CE-EMC, CE-LVD, RoHS, ISO9001
Inquiry
Product Comparison
Rika Sensors has professional production workshops and great production technology. weather sensors we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.Compared with other products in the same industry, Rika Sensors's weather sensors has the following characteristics.
  • Rika solar radiation shield supplier for temperature measurement 2
    Rika solar radiation shield supplier for temperature measurement 3
Product Details
Rika Sensors's environmental monitoring has excellent performances by virtue of the following excellent details.Rika Sensors has great production capability and excellent technology. We also have comprehensive production and quality inspection equipment. environmental monitoring has fine workmanship, high quality, reasonable price, good appearance, and great practicality.
  • Rika solar radiation shield supplier for temperature measurement 4

PRODUCT DESCRIPTION

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.The product with breathing fan, make sure the screen inside and outside environment difference is minimal.

Rika solar radiation shield supplier for temperature measurement 5

SPECIFICATIONS

Item

Specifications

Number of plates

7-20 plates optional,typ.:11,14,19

Color

White

Material

Anti-radiation engineering plastics & Stainless steel screw

Supply of fan

7-13.8VDC(typ.12VDC)

Rated power

1W

Operating temperature

-40℃-+75℃

Dimension

Inner diameter:62mm,Outer diameter:140mm/180mm
     Height:180mm(11 plates),220mm(14 plates),280mm(19 plates)

Optional accessories

Metal bracket(304SS),Embrace hoop screw(inner diameter:60mm,304SS)

BRACKET DIMENSION & WATERPROOF GLANDS SPECIFICATIONS

DIMENSION

Rika solar radiation shield supplier for temperature measurement 12

Plates

Inner space(mm)

D1(mm)

H1(mm)

H2(mm)

7

ø62*50

140

89

approx.63

8

ø62*63

140

101

approx.63

9

ø62*75

140

114

approx.63

10

ø62*88

140

126

approx.63

11

ø62*100

140

139

approx.63

12

ø62*113

140

151

approx.63

13

ø62*125

140

164

approx.63

14

ø62*138

140

176

approx.63

15

ø62*150

140

189

approx.63

16

ø62*163

140

201

approx.63

17

ø62*175

140

214

approx.63

18

ø62*198

140

226

approx.63

19

ø62*200

140

239

approx.63

20

ø62*213

140

251

approx.63

ADAPTER WATERPROOF GLANDS

PG  Glands

Model

Cable/Sensor Diameter(mm)

PG7

3-6.5

PG9

4-8

PG11

5-10

PG13.5

6-12

PG16

10-13

PG19

12-15

PG21

13-18

PG25

16-21

PG29

18-25

PG36

22-32

Rika solar radiation shield supplier for temperature measurement 13

PRODUCT DETAILS

Rika solar radiation shield supplier for temperature measurement 14

Rika solar radiation shield supplier for temperature measurement 15Material

Rika solar radiation shield supplier for temperature measurement 16

Rika solar radiation shield supplier for temperature measurement 17 Multiple output optional

Rika solar radiation shield supplier for temperature measurement 18

Rika solar radiation shield supplier for temperature measurement 19Product features

PRODUCT APPLICATION



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
